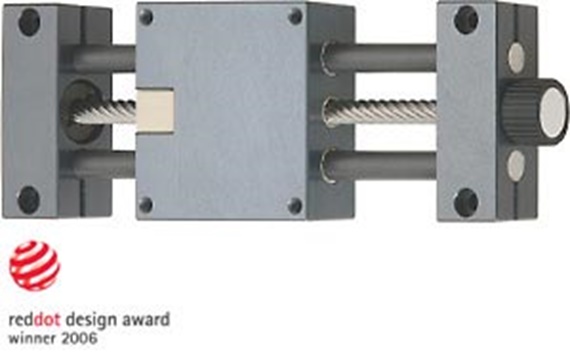

DryLin® HTSS - Fast Pitch Leadscrews

Pitch 10 x 12, 10 x 50, 18 x 100

Steep-threaded spindle

High-Speed-solution

Maintenance-free, self lubricating

L max.:

1. Selection of the installation size
2. Selection of the stroke length in mm
3. Selection of the accessory parts

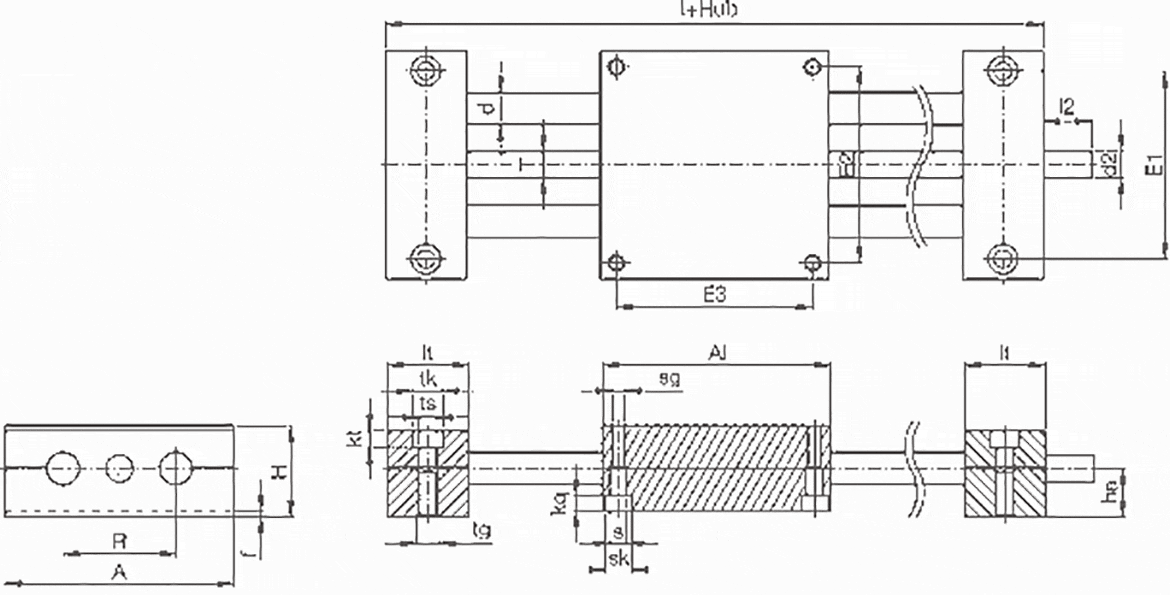

Detailed information can be found below in the drawings and tables as well as in the below mentioned pages.

Select the installation size of the leadscrew module.

Order no.	Max. stroke length	Weight [kg]	Additional (per 100 mm) [kg]	Max. static load capacity		Individual price for base stroke 100 mm
Order no.	Max. stroke length	Weight [kg]	Additional (per 100 mm) [kg]	axial [N]	Radial [N]	Individual price for base stroke 100 mm
HTSS-12-AWM ⁽¹⁾	750	1.543	0.067	22.5	90	Upon request
HTSS-20-AWM	1000	4.189	0.202	90	360	Upon request
SHTS-12-SWM ⁽¹⁾	750					Upon request
SHTS-20-SWM	1000					Upon request
SHTS-12-EWM ⁽¹⁾	750					Upon request
SHTS-20-EWM	1000					Upon request
SHTS-12-CWM ⁽¹⁾	750					Upon request
SHTS-20-CWM	1000					Upon request

3D-CAD

Sample request

PDF

Quote request

myCatalog

(1) Tapered off spindle end

Order no.	A -0,3	Al -0,3	H	E1 ±0,15	E2 ±0,15	E3 ±0,15	l	R	f	lt ±0,1	tk	ts	tg	kt ±0,1	s	sk	sg	kq	d	T	l2	d2 standard*	ha
HTSS-12-AWM ⁽¹⁾	3.35	3.35	1.34	2.76	2.87	73	5.71	1.65	0.08	1.18	0.43	0.26	M8	0.25	0.25	0.39	M6	0.24	0.47	SG10x50	0.67	SG10x50	0.71
HTSS-20-AWM	5.12	5.12	1.89	4.53	4.53	72	7.95	2.83	0.08	1.42	0.59	0.35	M10	0.34	0.25	0.43	M8	0.28	0.79	SG18x100	1.02	12 h9	0.91
SHTS-12-SWM ⁽¹⁾	3.35	3.35	1.34	2.87	2.87	73	5.71	1.65	0.08	1.18	0.43	0.26	M8	0.25	0.25	0.39	M6	0.24	0.47	SG10x50	0.67	SG10x50	0.71
SHTS-20-SWM	5.12	5.12	1.89	4.53	4.53	72	7.95	2.83	0.08	1.42	0.59	0.35	M10	0.34	0.25	0.43	M8	0.28	0.79	SG18x100	1.02	12 h9	0.91
SHTS-12-EWM ⁽¹⁾	3.35	3.35	1.34	2.87	2.87	73	5.71	1.65	0.08	1.18	0.43	0.26	M8	0.25	0.25	0.39	M6	0.24	0.47	SG10x50	0.67	SG10x50	0.71
SHTS-20-EWM	5.12	5.12	1.89	4.53	4.53	72	7.95	2.83	0.08	1.42	0.59	0.35	M10	0.34	0.25	0.43	M8	0.28	0.79	SG18x100	1.02	12 h9	0.91
SHTS-12-CWM ⁽¹⁾	3.35	3.35	1.34	2.87	2.87	73	5.71	1.65	0.08	1.18	0.43	0.26	M8	0.25	0.25	0.39	M6	0.24	0.47	SG10x50	0.67	SG10x50	0.71
SHTS-20-CWM	5.12	5.12	1.89	4.53	4.53	72	7.95	2.83	0.08	1.42	0.59	0.35	M10	0.34	0.25	0.43	M8	0.28	0.79	SG18x100	1.02	12 h9	0.91
