drylin® HTS-PL "Preload" - manual clearance adjustment

Special features

Absolute freedom from lubricants

Preloaded trapezoidal leadscrew nut. Pretension force: 11.2 lbf (50 N)

Manually and continuously adjustable radial clearance

Low weight due to aluminium and plastics

Tapered off spindle ends enable operation by hand wheel or motor

Temperature-resistant up to +176 °F

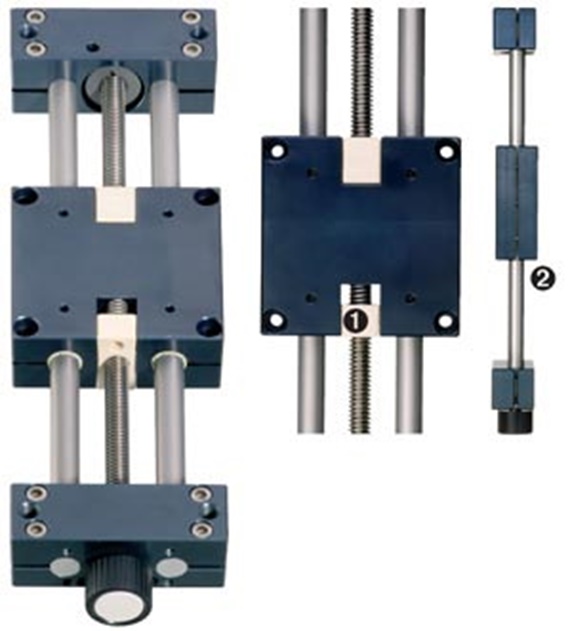

1 - Trapezoidal leadscrew nut with spring preload
2 - Radial clearance adjustable on both sides
Lead screw nut

Fitting for this articles:

HTS-PL - "Preload"

L max.:



Ordering of a complete system

Configuration in few steps:

1. Selection of the installation size
2. Selection of the stroke length in mm
3. Selection of the accessory parts

Hint:

Detailed information can be found below in the drawings and tables as well as in the below mentioned pages.

drylin® HTS-PL - complete system

Step 1

Select the installation size of the spindle-lift table.

technical drawing
Installation size:
Continue
DryLin® HTS - Design and assessment, horizontal
DryLin® HTS - leadscrew clamp
DryLin® HTS - Cursor

Lengths and weights [mm]

Order no. Max.
stroke length		 Weight
[kg]		 Additional weight
per 100 mm
[kg]		 Max. static
carrying capacity		 Individual price for base stroke 100 mm
axial
[N]		 Radial
[N]
Generally ships within 15-25 working days HTS-12-AWM-PL 750 1.1 0.1 700 2800 Upon request Add to shopping cart
Generally ships within 15-25 working days HTS-20-AWM-PL 1000 3.2 0.3 1600 6400 Upon request Add to shopping cart
Generally ships within 15-25 working days HTS-30-AWM-PL 1250 8.6 0.6 2500 10000 Upon request Add to shopping cart
Generally ships within 15-25 working days SHT-12-EWM-PL 750 1.3 0.2 700 2800 Upon request Add to shopping cart
Generally ships within 15-25 working days SHT-20-EWM-PL 1000 3.9 0.6 1600 6400 Upon request Add to shopping cart
Generally ships within 15-25 working days SHT-30-EWM-PL 1250 10.9 1.4 2500 10000 Upon request Add to shopping cart
Generally ships within 15-25 working days SHT-12-SWM-PL 750 1.3 0.2 700 2800 Upon request Add to shopping cart
Generally ships within 15-25 working days SHT-20-SWM-PL 1000 3.9 0.6 1600 6400 Upon request Add to shopping cart
Generally ships within 15-25 working days SHT-30-SWM-PL 1250 10.9 1.4 2500 10000 Upon request Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

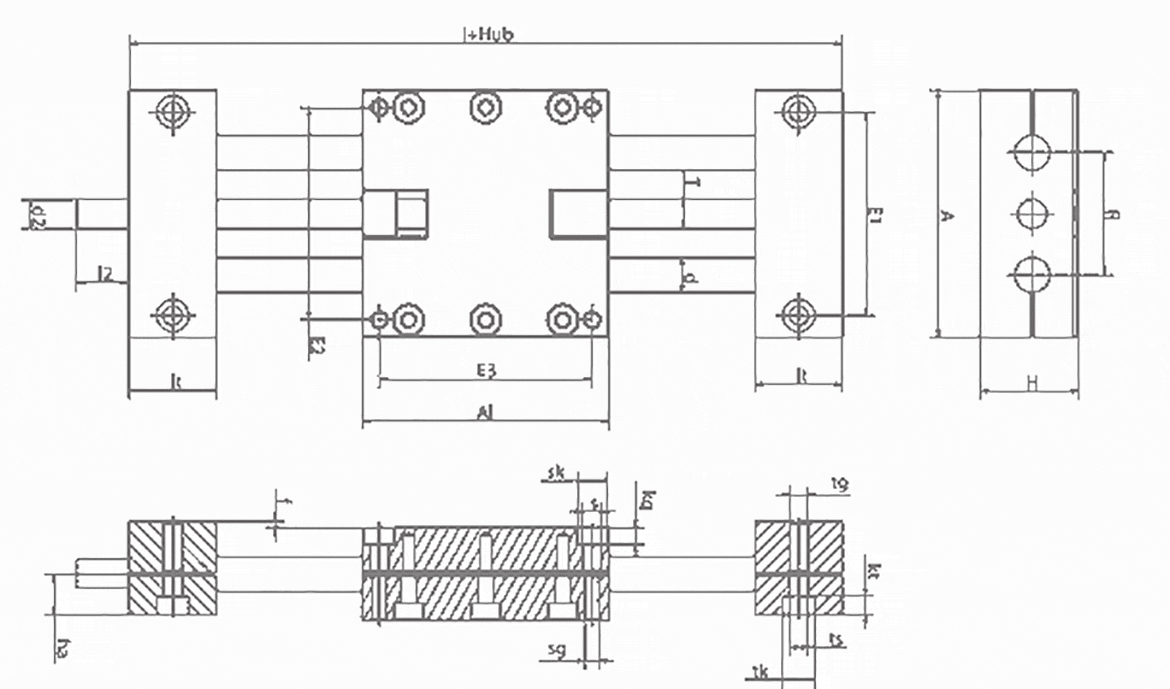

Dimensions [mm]

Order no. A
-0,3		 Al
-0,3		 H E1
±0,15		 E2
±0,15		 E3
±0,15		 l R f lt
±0,1		 tk ts
Generally ships within 15-25 working days HTS-12-AWM-PL 85 85 34 70 73 74 145 42 2 30 11 6.6
Generally ships within 15-25 working days HTS-20-AWM-PL 130 130 48 108 115 115 202 72 2 36 15 9
Generally ships within 15-25 working days HTS-30-AWM-PL 180 180 68 150 158 158 280 96 4 50 20 13.5
Generally ships within 15-25 working days SHT-12-EWM-PL 85 85 34 70 73 73 145 42 2 30 11 6.6
Generally ships within 15-25 working days SHT-20-EWM-PL 130 130 48 108 115 115 202 72 2 36 15 9
Generally ships within 15-25 working days SHT-30-EWM-PL 180 180 68 150 158 158 280 96 4 50 20 13.5
Generally ships within 15-25 working days SHT-12-SWM-PL 85 85 34 70 73 73 145 42 2 30 11 6.6
Generally ships within 15-25 working days SHT-20-SWM-PL 130 130 48 108 115 115 202 72 2 36 15 9
Generally ships within 15-25 working days SHT-30-SWM-PL 180 180 68 150 158 158 280 96 4 50 20 13.5
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog
Order no. tg kt
±0,1		 s sk sg kq d T l2 d2* standard ha
Generally ships within 15-25 working days HTS-12-AWM-PL M8 6.4 6.3 10 M6 6 12 TR10x2 17 TR10x2 18
Generally ships within 15-25 working days HTS-20-AWM-PL M10 8.6 6.4 11 M8 7 20 TR18x4 26 12 h9 23
Generally ships within 15-25 working days HTS-30-AWM-PL M16 12.6 11 18 M12 10.6 30 TR24x5 38 14 h9 36
Generally ships within 15-25 working days SHT-12-EWM-PL M8 6.4 6.3 10 M6 6 12 TR10x2 17 TR10x2 18
Generally ships within 15-25 working days SHT-20-EWM-PL M10 8.6 6.4 11 M8 7 20 TR18x4 26 12 h9 23
Generally ships within 15-25 working days SHT-30-EWM-PL M16 12.6 11 18 M12 10.6 30 TR24x5 38 14 h9 36
Generally ships within 15-25 working days SHT-12-SWM-PL M8 6.4 6.3 10 M6 6 12 TR10x2 17 TR10x2 18
Generally ships within 15-25 working days SHT-20-SWM-PL M10 8.6 6.4 11 M8 7 20 TR18x4 26 12 h9 23
Generally ships within 15-25 working days SHT-30-SWM-PL M16 12.6 11 18 M12 10.6 30 TR24x5 38 14 h9 36
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

* TR10x2 without machined spindle end
