drylin® SLWS compact with steep thread

Special properties

Pitch 8 x 15 mm

Flat and compact

High torsional stability (stiffening)

Hard anodized aluminium rail

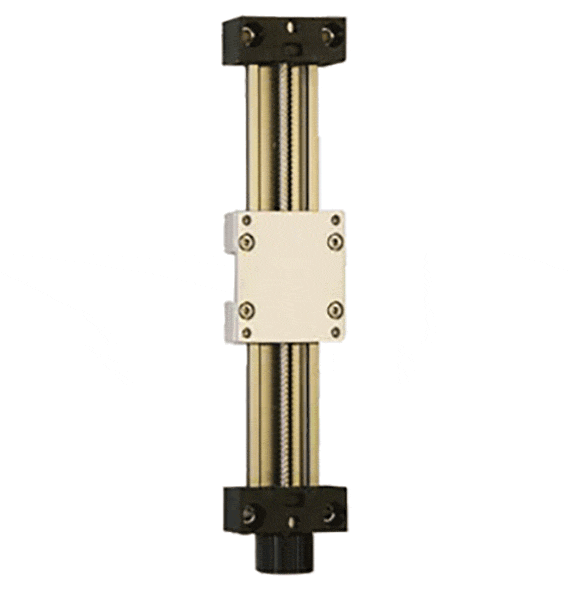

SLWS

HTSS High speed

Technical data

Order no. Max.
stroke length 		Weight
[kg] 		Additional
(per 100 mm)
[kg] 		Max. static load capacity
axial
[N] 		radial
[N]
Generally ships within 15-25 working days SLWS-1040-10X12 750 7 100 400 Upon request Add to shopping cart
Generally ships within 15-25 working days SLWS-1040-10X50 750 7 100 400 Upon request Add to shopping cart
Generally ships within 15-25 working days SLWS-1080-10X12 750 9 100 400 Upon request Add to shopping cart
Generally ships within 15-25 working days SLWS-1080-10X50 750 9 100 400 Upon request Add to shopping cart
Generally ships within 15-25 working days SLWS-2080-18X100 750 9 400 1600 Upon request Add to shopping cart
Generally ships within 15-25 working days SLWS-0630-08X15 Upon request Add to shopping cart
Generally ships within 15-25 working days SLWS-0630 300 2 8 50 200 Upon request Add to shopping cart
SLWS-1040 750 0.7 0.1 150 600 Upon request Add to shopping cart
SLWS-1080 750 0.9 0.2 150 600 Upon request Add to shopping cart
SLWS-2080 1000 3 0.4 300 1200 Upon request Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

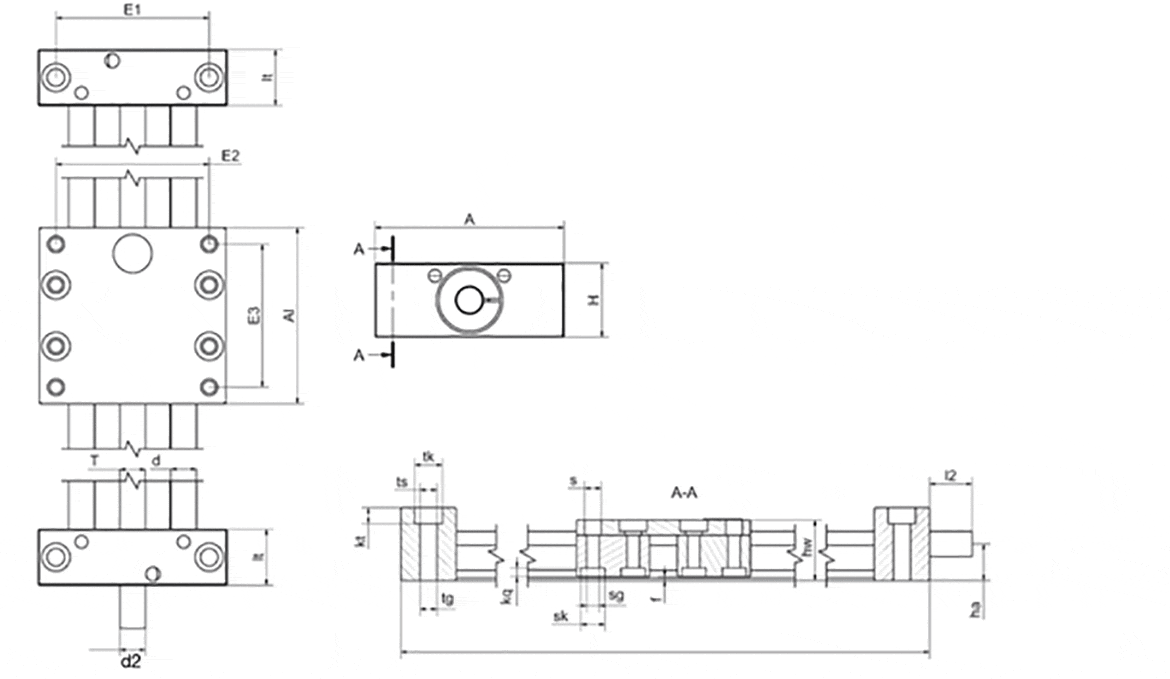

Dimensions [mm]

Order no. A
-0,3 		Al
-0,3 		H E1
±0,15 		E2
±0,15 		E3
±0,15 		l hw f lt
±0,1 		tk ts tg
Generally ships within 15-25 working days SLWS-1040-10X12 74 69 29 60 60 56 113 24 15 11 68 M8
Generally ships within 15-25 working days SLWS-1040-10X50 74 69 29 60 60 56 113 24 15 11 68 M8
Generally ships within 15-25 working days SLWS-1080-10X12 108 100 29 94 94 87 144 24 15 11 68 M8
Generally ships within 15-25 working days SLWS-1080-10X50 108 100 29 94 94 87 144 24 15 11 68 M8
Generally ships within 15-25 working days SLWS-2080-18X100 134 150 46 116 116 132 206 44 15 15 86 M10
Generally ships within 15-25 working days SLWS-0630-08X15
Generally ships within 15-25 working days SLWS-0630 54 60 20 40 45 51 100 175 12 20 11 66
SLWS-1040 74 69 29 60 60 56 113 24 1.5 22 11 6.8
SLWS-1080 108 100 29 94 94 87 144 24 1.5 22 11 7.1
SLWS-2080 134 150 46 116 116 132 206 44 1.5 28 15 8.6
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog
Part. No. kt s sk sg kq d T l2 d2 ha
  ±0,1
Generally ships within 15-25 working days SLWS-1040-10X12 64 95 66 M6 44 10 22 Sg10x12 145
Generally ships within 15-25 working days SLWS-1040-10X50 64 95 66 M6 44 10 22 Sg10x50 145
Generally ships within 15-25 working days SLWS-1080-10X12 64 95 66 M6 44 10 22 Sg10x12 145
Generally ships within 15-25 working days SLWS-1080-10X50 64 95 66 M6 44 10 22 Sg10x50 145
Generally ships within 15-25 working days SLWS-2080-18X100 126 15 11 M8 5 25 28 14h9 30
Generally ships within 15-25 working days SLWS-0630-08X15
Generally ships within 15-25 working days SLWS-0630 8 45 7 M4 2 6 M8 15 8 95
SLWS-1040 6.4 6.6 9.5 M6 4.4 10 22 10x12/10x50 14.5
SLWS-1080 6.4 6.6 9.5 M6 4.4 10 22 10x12/10x50 18.5
SLWS-2080 8.6 9 14 M8 5.5 20 28 100 23
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog
DryLin® SLW - advantage of the system at one glance.
