drylin® SET - EasyTube

Linear unit for easy format adjustments

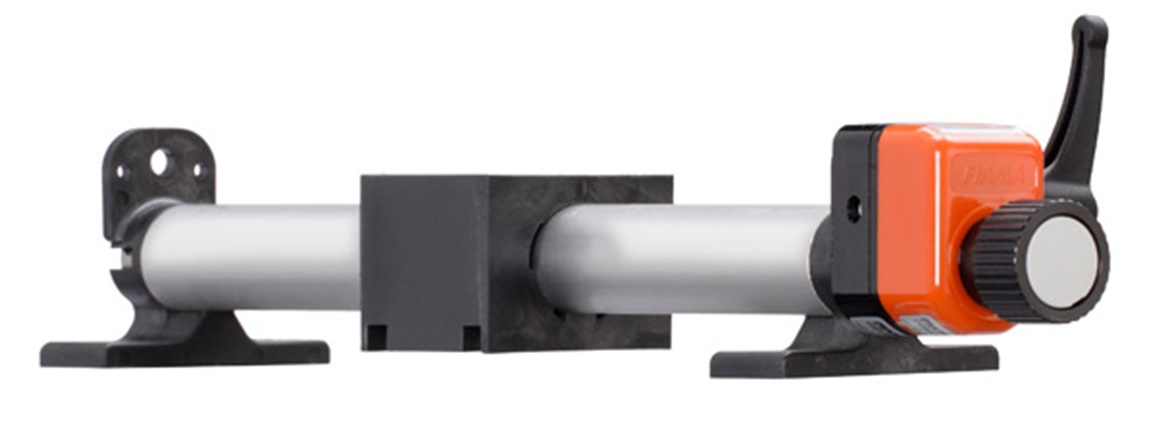

EasyTube linear unit for easy adjustment functions

This new addition to the drylin® slide table range has a simple but solid design; the complete system only consists of a few components. The anodized aluminum tube guides the slide carriage and, at the same time, protects the leadscrew. The carriage and the trapezoidal nut are manufactured from a high performance polymer bearing material. The system runs without any lubrication, and gives a low-friction value combined with an excellent wear rate. High performance iglide® plastic bushings are used in the axial fixing of the leadscrew.

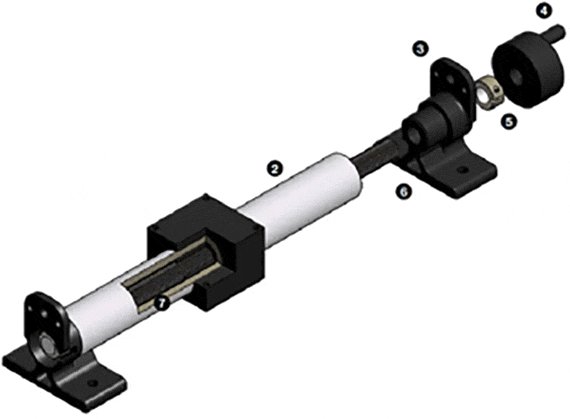

Trapezoidal threaded nut and carriage made from polymer bearing material

Anodized aluminum guide tube

Radial and axial bearings made from polymer bearing material

Hand wheel

Stainless steel clamp

Polymer end block

Steel trapezoidal leadscrew

Advantages:

Absolutely lubrication-free

Corrosion-resistant when specified with a stainless leadscrew

Lightweight (aluminum and polymer)

Can be driven from both sides by hand or motor drive

Temperature resistant up to 176° F (80°C)

Ideal for washdown applications

EasyTube

A [inch]:

Also available as flange version (for axial connection)

Lengths [mm] and weights

Part No.	Max. stroke length	Aluminum shaft		Max. static load capacity
		Weight shaft end supports and carriage	Additional (per 100 mm)	Axial	Radial
	[mm]	[lbs]	[lbs]	[lbs]	[lbs]
SET-12-AWM ⁽¹⁾	200	0.05	0.02	2.25	4.5
SET-25-AWM ⁽¹⁾	750	0.15	0.081	33.75	67.5
SET-30-AWM ⁽¹⁾	850	0.2	0.141	45	90

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

(1) Tapered off spindle end

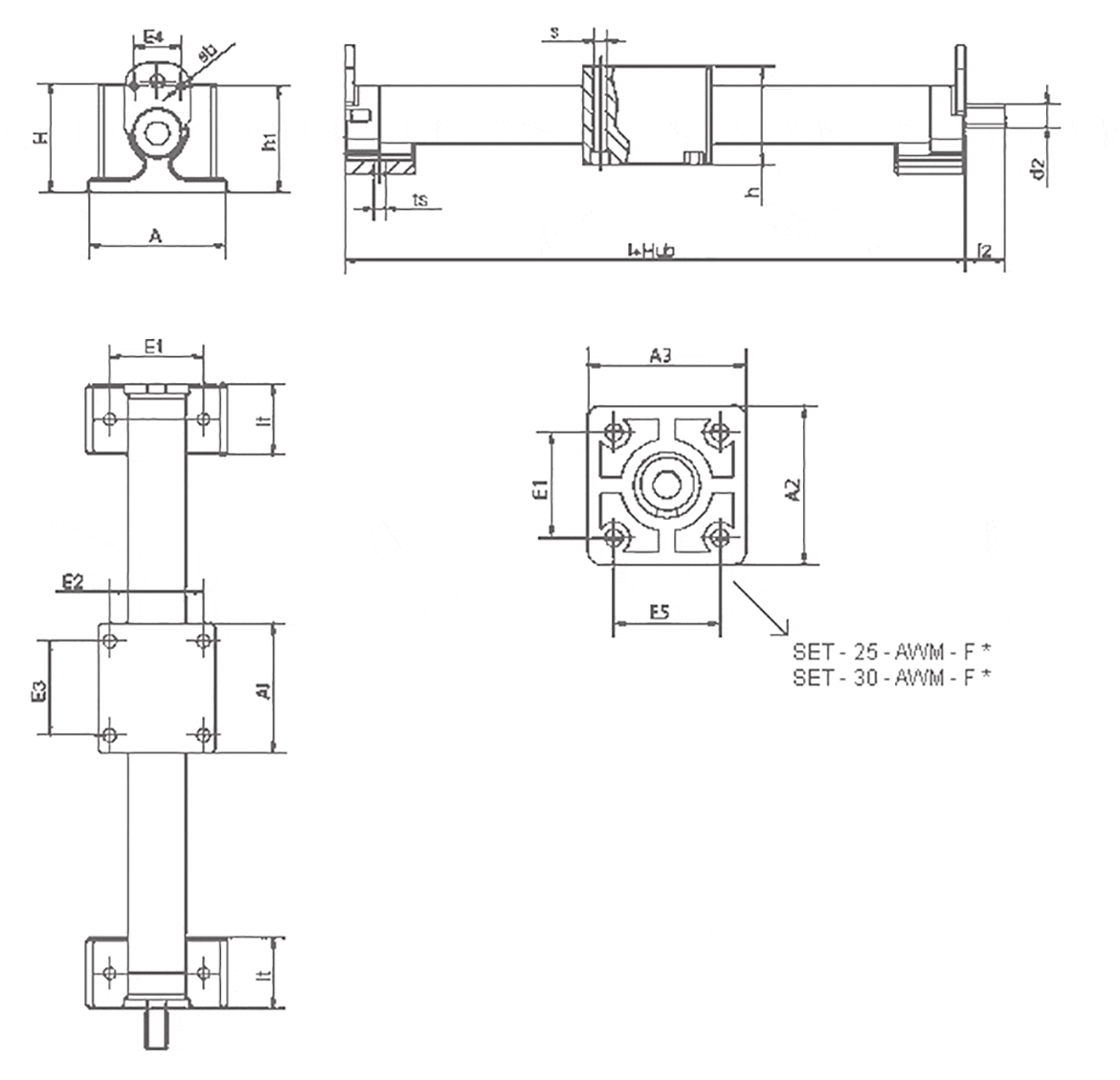

Dimensions [mm]

Order no.	A	Al	H	E1	E2	E3	E4	l	h	h1	lt	ts	s	sb	l2	d2
SET-12-AWM ⁽¹⁾	30	30	23.5	20	20	20	-	60	22		15	3.3	4.2		10	M4
SET-25-AWM ⁽¹⁾	60	55	44	40	40	40	20	115	39	45	30	5.2	5.2	M4	17	TRx10x2
SET-30-AWM ⁽¹⁾	80	55	49	60	40	40	20	125	39	50	35	6.5	5.2	M4	20	TRx12x3
