Bus cables

The chainflex® bus cables are available for all well-known industrial bus systems such as Profibus, Interbus, Profinet, Ethernet, CAN-Bus, DeviceNet, ASi or CC link. Depending on the cable family, they can be used for torsion, for severe climatic conditions, for narrow radii, or particularly long travel distances, at high speeds and accelerations. Tested in the igus® laboratory with millions of cycles in e-chains®, they provide guaranteed safety against failure.
  • Bending radii up to 7,5xd
  • Jacket materials: PVC, iguPUR, PUR or TPE
mais
menos
36 meses de garantia
36 meses de garantia

Pode contar com isso da nossa parte.

Gama

Categorias

Cabos de controle
Cabos de dados
Cabos de motor
Cabos de bus
Cabos de sistemas de medição
Cabos de servo
Cabos coaxiais
Cabos de fibra ótica (FOC)
Cabos especiais
Cabos de robô

Filtrar

Requisitos do condutor
Exibir detalhes
Cable structure
Material
Requirements
List
Tile

Quantidade de produtos: 11

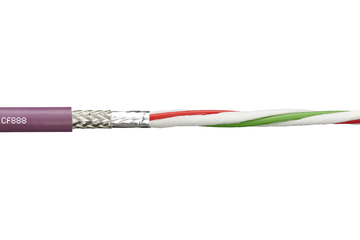

chainflex® bus cable CF888
chainflex® bus cable CF888
Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 1589 and 2560, 30 V, 60 °C UL/CSA<br>CF888.001: Style 1589 and 2560, 30 V, 60 °C<br />CF888.021-CF888.060: Style 1598 and 2571, 30 V, 80 °C UL listed – filter EAC<br>Certified to no. TC RU C-DE. ME77.B.01559 CTP<br>Certified to no. C-DE. PB49.B.00449 Lead free<br>Following 2011/65/EU (RoHS-II) CE<br>Following 2014/35/EU
  • Requirements: For flexing applications
  • Outer jacket: PVC
  • Overall shield
  • Oil resistance: No oil resistance
  • Flame retardant
  • chainflex® class: 3.1.1.1

a pedido

4 de 4 un. disponíveis a partir de 24 - 48 *Prazo sujeito à alteração conforme disponibilidade
Ir à página do produto

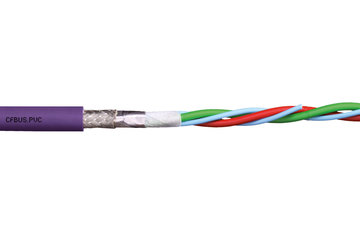

chainflex® bus cable CFBUS.PVC
chainflex® bus cable CFBUS.PVC
UV resistance<br>Medium Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 1598 and 2571, 30 V, 80 °C UL/CSA<br>Style 1598 and 2571, 30 V, 80 °C UL listed<br>CMX, 75°C NFPA<br>Following NFPA 79-2012 chapter 12.9 UL listed – filter EAC<br>Certified to no. TC RU C-DE. ME77.B.01218 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF240.02.24, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU
  • Requirements: For medium duty applications
  • Outer jacket: PVC
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • Flame retardant
  • UV-resistant
  • chainflex® class: 4.3.2.1

de 1,59 USD / ft

13 de 13 un. disponíveis em 2 - 5 dias úteis *Prazo sujeito à alteração conforme disponibilidade
Ir à página do produto

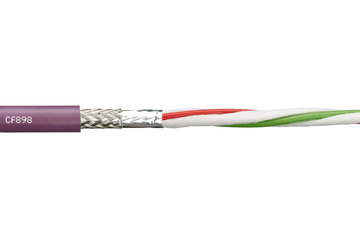

chainflex® bus cable CF898
chainflex® bus cable CF898
UV resistance<br>Medium Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, FT-2 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 10493 and 20549, 300 V, 80 °C UL/CSA<br>CF898.001-CF898.060: Style 1598 and 20236, 80 V, 80 °C<br />CF898.080-CF898.081: Style 10493 and 20549, 300 V, 80 °C<br />CF898.082-CF898.083: Style 21866, 90 V, 80 °C UL listed – filter EAC<br>Certified to no. TC RU C-DE. ME77.B.01559 CTP<br>Certified to no. C-DE. PB49.B.00449 Lead free<br>Following 2011/65/EU (RoHS-II) CE<br>Following 2014/35/EU
  • Requirements: For flexing applications
  • Outer jacket: iguPUR
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Flame retardant
  • UV-resistant
  • chainflex® class: 3.1.3.1

de 1,65 USD / ft

8 de 8 un. disponíveis a partir de 24 - 48 *Prazo sujeito à alteração conforme disponibilidade
Ir à página do produto
chainflex® bus cable CFBUS.PUR
chainflex® bus cable CFBUS.PUR
UV resistance<br>Medium Offshore<br>MUD-resistant following NEK 606 - status 2009 Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 60754 UL/CSA<br>Style 1598 and 20236, 30 V, 80 °C UL/CSA<br>Style 1598 and 20236, 30 V, 80 °C<br />CFBUS.PUR.H01.049: Style 10493 (1,5 mm²), 11602 (0,15 mm²) and 20233,&nbsp;300 V, 80 °C<br />CFBUS.PUR.H01.060: Style 10493 (1,5 mm²), 11602 (0,38 mm²) and 20233,&nbsp;300 V, 80 °C UL listed<br>CMX, 75°C UL listed – filter NFPA<br>Following NFPA 79-2012 chapter 12.9 DNV-GL<br>Certified according to DNV-GL Type Testing – Certificate No.: 61 935-14 HH EAC<br>Certified to no. TC RU C-DE. ME77.B.01218 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF77.UL.05.12.D, tested by IPA according to standard 14644-1 DESINA<br>According to VDW, DESINA standardization CE<br>Following 2014/35/EU
  • Requirements: For medium duty applications
  • Outer jacket: PUR
  • Overall shield
  • Coolant resistant
  • Notch-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Flame retardant
  • PVC-free
  • Hydrolysis and microbe-resistant
  • UV-resistant
  • Halogen-free
  • chainflex® class: 4.3.3.1

de 2,12 USD / ft

15 de 15 un. disponíveis em 2 - 5 dias úteis *Prazo sujeito à alteração conforme disponibilidade
Ir à página do produto

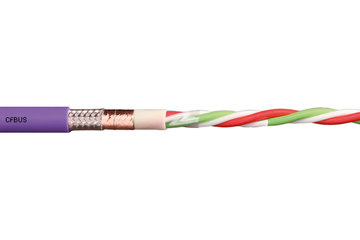

chainflex® bus cable CFBUS
chainflex® bus cable CFBUS
UV resistance<br>Medium Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 1589 and 21371, 30 V, 80 °C UL/CSA<br>CFBUS.001-.035 and CFBUS.055: Style 1589 and 21371, 30 V, 80 °C<br />CFBUS.040-.052 and CFBUS.060: Style 10138 and 21235, 300 V, 80 °C UL listed – filter NFPA<br>Following NFPA 79-2012 chapter 12.9 DNV-GL<br>Certified according to DNV-GL Type Testing – Certificate No.: 61 935-14 HH EAC<br>Certified to no. TC RU C-DE. ME77.B.01218 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF34.UL.25.04.D, tested by IPA according to standard 14644-1 DESINA<br>According to VDW, DESINA standardization CE<br>Following 2014/35/EU
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • Flame retardant
  • Hydrolysis and microbe-resistant
  • UV-resistant
  • chainflex® class: 6.6.4.1

de 2,37 USD / ft

21 de 21 un. disponíveis em 2 - 5 dias úteis *Prazo sujeito à alteração conforme disponibilidade
Ir à página do produto

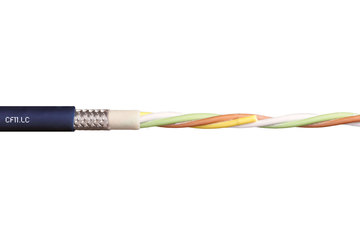

chainflex® bus cable CF11.LC
chainflex® bus cable CF11.LC
UV resistance<br>High Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 60754 UL listed – filter EAC<br>Certified to no. TC RU C-DE. ME77.B.01218 Lead free<br>Following 2011/65/EU (RoHS-II) Clean room<br>According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • PVC-free
  • Hydrolysis and microbe-resistant
  • UV-resistant
  • Halogen-free
  • chainflex® class: 6.6.4.1

de 5,80 USD / ft

1 de 1 un. disponíveis em 2 - 5 dias úteis *Prazo sujeito à alteração conforme disponibilidade
Ir à página do produto

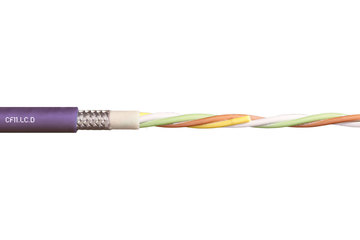

chainflex® bus cable CF11.LC.D
chainflex® bus cable CF11.LC.D
UV resistance<br>Medium Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 60754 UL listed – filter EAC<br>Certified to no. TC RU C-DE. ME77.B.01218 Lead free<br>Following 2011/65/EU (RoHS-II) Clean room<br>According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1 DESINA<br>According to VDW, DESINA standardization CE<br>Following 2014/35/EU
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • UV-resistant
  • Halogen-free
  • chainflex® class: 6.6.4.1

a pedido

2 de 2 un. disponíveis em 2 - 5 dias úteis *Prazo sujeito à alteração conforme disponibilidade
Ir à página do produto

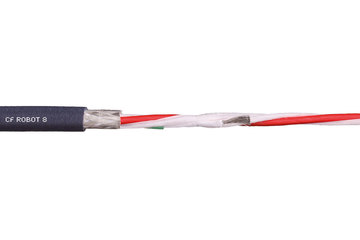

chainflex® bus cable CFROBOT8
chainflex® bus cable CFROBOT8
UV resistance<br>High Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, FT-2 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 1589 and 20963, 30 V, 80 °C UL/CSA<br>Style 1589 and 20236, 30 V, 80 °C<br />CFROBOT8.045-CFROBOT8.049: Style 1589 and 20236, 300 V, 80 °C<br />&nbsp; UL listed – filter EAC<br>Certified to no. TC RU C-DE. ME77.B.01218 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU
  • Requirements: For twistable applications
  • Outer jacket: PUR
  • Overall shield
  • Coolant resistant
  • Notch-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Flame retardant
  • Hydrolysis and microbe-resistant
  • UV-resistant
  • chainflex® class: 6.1.3.3

de 9,47 USD / ft

8 de 8 un. disponíveis em 2 - 5 dias úteis *Prazo sujeito à alteração conforme disponibilidade
Ir à página do produto

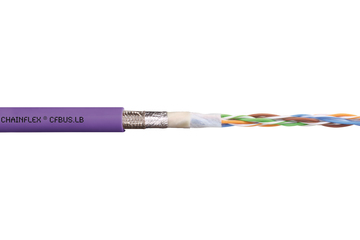

chainflex® bus cable CFBUS.LB
chainflex® bus cable CFBUS.LB
UV resistance<br>Medium Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 60754 UL listed – filter EAC<br>Certified to no. TC RU C-DE. ME77.B.01218 Lead free<br>Following 2011/65/EU (RoHS-II) Clean room<br>According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1 DESINA<br>According to VDW, DESINA standardization CE<br>Following 2014/35/EU
  • Requirements: For heavy duty applications
  • Outer jacket: TPE
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • PVC-free
  • UV-resistant
  • Halogen-free
  • chainflex® class: 7.6.4.1

a pedido

9 de 9 un. disponíveis em 2 - 5 dias úteis *Prazo sujeito à alteração conforme disponibilidade
Ir à página do produto
chainflex® bus cable CFSPECIAL.484
chainflex® bus cable CFSPECIAL.484
UV resistance<br>High Flame retardant<br>Flame-retardant (following DIN EN 60332-1-2, DIN EN 45545-2) Fire safety class: 3 (in accordance to EN 45545-2) or 4 (in accordance to DIN 5510-2) Halogen-free<br>Following EN 60754 Lead free<br>Following 2011/65/EU (RoHS-II) CE<br>Following 2014/35/EU Smoke gas density<br>Low smoke gas density according to EN 61034-2 Toxicity<br>Low toxicity according to EN 50305-9.2
  • Requirements: For heaviest duty applications in rail vehicles
  • Outer jacket: Special mixture
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 60811-2-1
  • Flame retardant
  • Smoke gas density: Low smoke gas density according to EN 61034-2
  • Toxicity: Low toxicity according to EN 50305-9.2
  • Self-extinguishing

a pedido

1 de 1 un. disponíveis em 2 - 5 dias úteis *Prazo sujeito à alteração conforme disponibilidade
Ir à página do produto

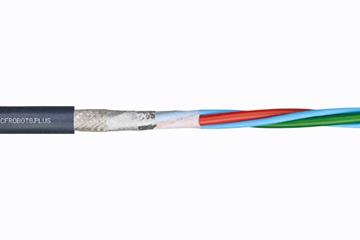

chainflex® bus cable CFROBOT8.PLUS
chainflex® bus cable CFROBOT8.PLUS
UV resistance<br>High Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, FT-2 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 1589 and 20236, 30 V, 80 °C UL/CSA<br>Style 1589 and 20236, 30 V, 80 °C UL listed – filter EAC<br>Certified to no. TC RU C-DE. ME77.B.01218 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU
  • Requirements: For twistable applications
  • Outer jacket: PUR
  • Overall shield
  • Coolant resistant
  • Notch-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Flame retardant
  • Hydrolysis and microbe-resistant
  • UV-resistant
  • chainflex® class: 6.1.3.4

a pedido

'Disponíveis a pedido
Ir à página do produto
