Measuring system cables

The chainflex® measuring system cables, as well as resolver cables, feedback cables and encoder cables for energy chains® are cables for medium to high stress. The measuring system cables have various approvals and are available for systems of virtually all renowned manufacturers such as B&R, Baumüller, Heidenhain, Lenze or Siemens. Depending on the type, they are flame-retardant, coolant-resistant and oil-resistant, cold-flexible or twistable. Tested in the igus® laboratory with millions of cycles in e-chains®, they provide guaranteed safety against failure.
  • Bending radii up to 10xd
  • Jacket materials: PVC, iguPUR, PUR or TPE
mais
menos
36 meses de garantia
36 meses de garantia

Pode contar com isso da nossa parte.

Gama

Categorias

Cabos de controle
Cabos de dados
Cabos de motor
Cabos de bus
Cabos de sistemas de medição
Cabos de servo
Cabos coaxiais
Cabos de fibra ótica (FOC)
Cabos especiais
Cabos de robô

Filtrar

Requisitos do condutor
Exibir detalhes
Cable structure
Electrical information
Requirements
Drive technology system
List
Tile

Quantidade de produtos: 7

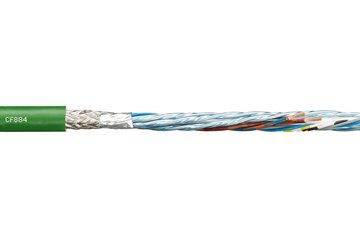

chainflex® measuring system cable CF884
chainflex® measuring system cable CF884
Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA<br>Following NFPA 79-2012 chapter 12.9 EAC<br>Certified to no. TC RU C-DE. ME77.B.01559 CTP<br>Certified to no. C-DE. PB49.B.00449 Lead free<br>Following 2011/65/EU (RoHS-II) CE<br>Following 2014/35/EU
  • Requirements: For flexing applications
  • Outer jacket: PVC
  • Oil resistance: No oil resistance
  • Silicone-free
  • Flame retardant
  • Overall shield
  • chainflex® class: 3.1.1.1

de 1,39 USD / ft

7 de 7 un. disponíveis a partir de 24 - 48 *Prazo sujeito à alteração conforme disponibilidade
Ir à página do produto

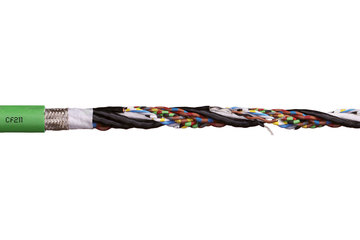

chainflex® measuring system cable CF211
chainflex® measuring system cable CF211
Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA<br>Following NFPA 79-2012 chapter 12.9 EAC<br>Certified to no. TC RU C-DE. ME77.B.01559 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 2. Outer jacket material complies with CF5.10.07, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU
  • Requirements: For medium duty applications
  • Outer jacket: PVC
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • Silicone-free
  • Flame retardant
  • chainflex® class: 4.2.2.1

de 1,54 USD / ft

5 de 24 un. disponíveis a partir de 24 - 48 *Prazo sujeito à alteração conforme disponibilidade
Ir à página do produto

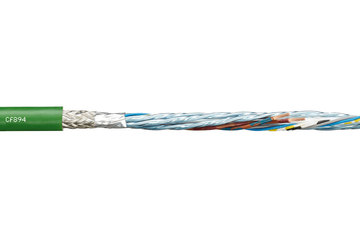

chainflex® measuring system cable CF894
chainflex® measuring system cable CF894
UV resistance<br>Medium Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA<br>Following NFPA 79-2012 chapter 12.9 EAC<br>Certified to no. TC RU C-DE. ME77.B.01559 CTP<br>Certified to no. C-DE. PB49.B.00449 Lead free<br>Following 2011/65/EU (RoHS-II) CE<br>Following 2014/35/EU
  • Requirements: For flexing applications
  • Outer jacket: iguPUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Silicone-free
  • Flame retardant
  • chainflex® class: 3.1.3.1

de 1,74 USD / ft

6 de 7 un. disponíveis a partir de 24 - 48 *Prazo sujeito à alteração conforme disponibilidade
Ir à página do produto

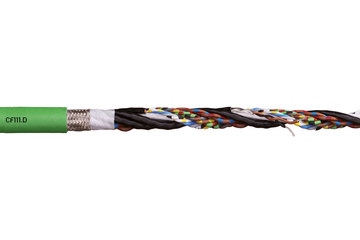

chainflex® measuring system cable CF111.D
chainflex® measuring system cable CF111.D
UV resistance<br>Medium Offshore<br>MUD-resistant following NEK 606 - status 2009 Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 60754 NFPA<br>Following NFPA 79-2012 chapter 12.9 DNV-GL<br>Certified according to DNV-GL Type Testing – Certificate No.: 61 935-14 HH EAC<br>Certified to no. TC RU C-DE. ME77.B.01559 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 DESINA<br>According to VDW, DESINA standardization CE<br>Following 2014/35/EU
  • Requirements: For medium duty applications
  • Outer jacket: PUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Halogen-free
  • Silicone-free
  • Flame retardant
  • Offshore
  • Coolant resistant
  • Hydrolysis and microbe-resistant
  • Overall shield
  • Notch-resistant
  • PVC-free
  • chainflex® class: 4.2.3.1

de 2,46 USD / ft

20 de 20 un. disponíveis em 2 - 5 dias úteis *Prazo sujeito à alteração conforme disponibilidade
Ir à página do produto

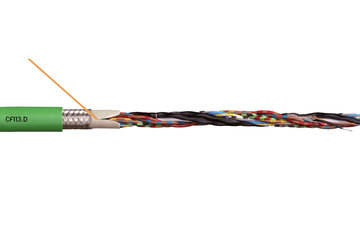

chainflex® measuring system cable CF113.D
chainflex® measuring system cable CF113.D
UV resistance<br>Medium Offshore<br>MUD-resistant following NEK 606 - status 2009 Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 60754 NFPA<br>Following NFPA 79-2012 chapter 12.9 DNV-GL<br>Certified according to DNV-GL Type Testing – Certificate No.: 61 935-14 HH EAC<br>Certified to no. TC RU C-DE. ME77.B.01559 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 DESINA<br>According to VDW, DESINA standardization CE<br>Following 2014/35/EU
  • Requirements: For extremely heavy duty applications
  • Outer jacket: PUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Halogen-free
  • Silicone-free
  • Flame retardant
  • Offshore
  • Coolant resistant
  • Hydrolysis and microbe-resistant
  • Overall shield
  • Notch-resistant
  • PVC-free
  • CFRIP®
  • chainflex® class: 6.5.3.1

de 2,54 USD / ft

33 de 33 un. disponíveis em 2 - 5 dias úteis *Prazo sujeito à alteração conforme disponibilidade
Ir à página do produto

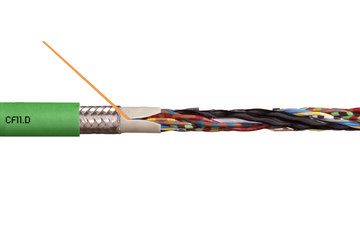

chainflex® measuring system cable CF11.D
chainflex® measuring system cable CF11.D
UV resistance<br>Medium Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 60754 EAC<br>Certified to no. TC RU C-DE. ME77.B.01559 Lead free<br>Following 2011/65/EU (RoHS-II) Clean room<br>According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1 DESINA<br>According to VDW, DESINA standardization CE<br>Following 2014/35/EU
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • Halogen-free
  • Silicone-free
  • Hydrolysis and microbe-resistant
  • PVC-free
  • CFRIP®
  • chainflex® class: 6.6.4.1

de 2,73 USD / ft

31 de 31 un. disponíveis em 2 - 5 dias úteis *Prazo sujeito à alteração conforme disponibilidade
Ir à página do produto

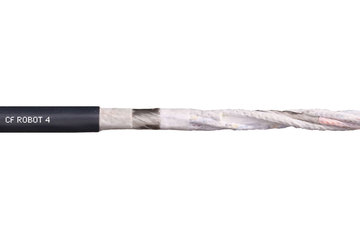

chainflex® measuring system cable CFROBOT4
chainflex® measuring system cable CFROBOT4
UV resistance<br>High Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 60754 NFPA<br>Following NFPA 79-2012 chapter 12.9 EAC<br>Certified to no. TC RU C-DE. ME77.B.01218 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU
  • Requirements: For twistable applications
  • Outer jacket: PUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Halogen-free
  • Silicone-free
  • Flame retardant
  • Coolant resistant
  • Hydrolysis and microbe-resistant
  • Overall shield
  • Notch-resistant
  • PVC-free
  • chainflex® class: 6.1.3.3

de 7,63 USD / ft

5 de 5 un. disponíveis em 2 - 5 dias úteis *Prazo sujeito à alteração conforme disponibilidade
Ir à página do produto
