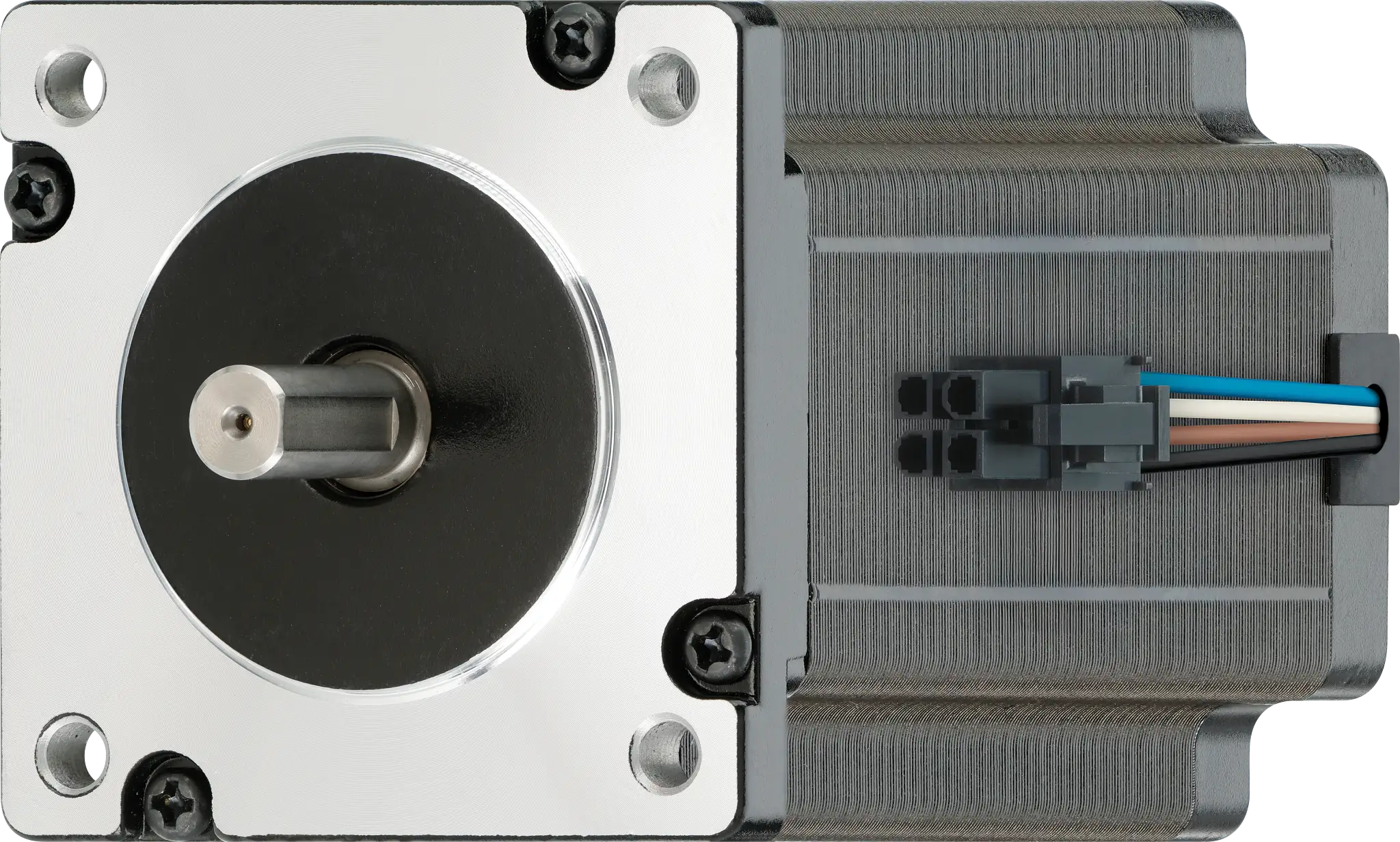

drylin® E stepper motor as long version, Molex with connection cable, NEMA 24

The medium-installation-size power motor

The more powerful stepper motor impresses with its higher torque in the medium speed range. The assembly dimensions are identical to the NEMA23, allowing many applications. The stepper motor works precisely, is robust, cost-effective and easy to control. It is used in inexpensive stand-alone devices, as well as automation machines and format adjustments. The motor connection has a JST connector. This protrudes 300mm from the rear part of the motor housing. The advantage of this connector is that it is more cost-effective than the metric connector. The encoder also has a JST connector. But this has no cable. The cable from the motor control system is connected directly to the encoder.

Tech up:

• Stepper motor series (0.8 to 4.0Nm) with optional encoder (5V three-channel/500 pulses)

Cost down:

• With 0.3m connecting wires and cost-effective JST and Molex connectors

Proof:

• 38% stronger compared to motors with overall length M

Sustainability:

• CE according to ROHS
