Data cables

Data cables from chainflex® are available as PVC, PUR and TPE data cables, as twisted pair, or as data cables braided in layers. The highly flexible cables are suitable for high stress and are flame-retardant as well as oil-resistant. They are used in high speeds and accelerations. All chainflex® data cables are designed as shielded cables. Tested in the igus® laboratory with millions of cycles in e-chains®, they provide guaranteed safety against failure.
  • Bending radii up to 6,8xd
  • Jacket materials: PVC, PUR or TPE
mais
menos
36 meses de garantia
36 meses de garantia

Pode contar com isso da nossa parte.

Gama

Categorias

Cabos de controle
Cabos de dados
Cabos de motor
Cabos de bus
Cabos de sistemas de medição
Cabos de servo
Cabos coaxiais
Cabos de fibra ótica (FOC)
Cabos especiais
Cabos de robô

Filtrar

Requisitos do condutor
Exibir detalhes
Cable structure
Material
Requirements
List
Tile

Quantidade de produtos: 11

chainflex® CF240 data cable
chainflex® CF240 data cable
Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 10493 and 2464, 300 V, 80 °C NFPA<br>Following NFPA 79-2012 chapter 12.9 EAC<br>Certified to no. TC RU C-DE. ME77.B.01254 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF240.02.24, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU UL/CSA<br>Style 11008 and 2464, 300 V, 80 °C
  • Requirements: For medium duty applications
  • Outer jacket: PVC
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • Flame retardant
  • Silicone-free
  • chainflex® class: 4.4.2.1

de 0,90 USD / ft

3 de 24 un. disponíveis a partir de 24 - 48 *Prazo sujeito à alteração conforme disponibilidade
Ir à página do produto
chainflex® CF240.PUR data cable
chainflex® CF240.PUR data cable
UV resistance<br>Medium Offshore<br>MUD-resistant following NEK 606 - status 2009 Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 60754 UL/CSA<br>Style 10493 and 20233, 300 V, 80 °C NFPA<br>Following NFPA 79-2012 chapter 12.9 DNV-GL<br>Certified according to DNV-GL Type Testing – Certificate No.: 61 935-14 HH EAC<br>Certified to no. TC RU C-DE. ME77.B.01254 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU UL/CSA<br>Style 10493 and 20233, 300 V, 80 °C
  • Requirements: For medium duty applications
  • Outer jacket: PUR
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Notch-resistant
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Halogen-free
  • Silicone-free
  • PVC-free
  • UV-resistant
  • chainflex® class: 4.4.3.1

de 1,08 USD / ft

Prazo sob consulta, normalmente entre 2 a 6 semanas
Ir à página do produto

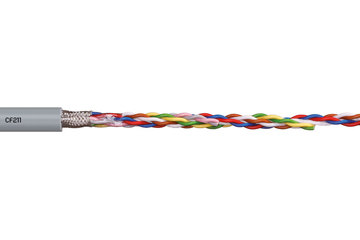

chainflex® CF211 data cable
chainflex® CF211 data cable
Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 10493 and 2464, 300 V, 80 °C NFPA<br>Following NFPA 79-2012 chapter 12.9 EAC<br>Certified to no. TC RU C-DE. ME77.B.01254 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF240.02.24, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU UL/CSA<br>Style 10493 and 2464, 300 V, 80 °C
  • Requirements: For heavy duty applications
  • Outer jacket: PVC
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • Flame retardant
  • Silicone-free
  • chainflex® class: 5.5.2.1

de 0,89 USD / ft

21 de 21 un. disponíveis em 2 - 5 dias úteis *Prazo sujeito à alteração conforme disponibilidade
Ir à página do produto

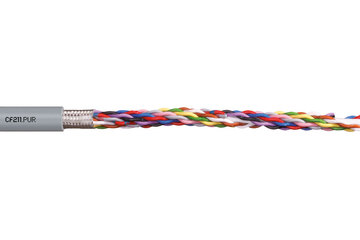

chainflex® CF211.PUR data cable
chainflex® CF211.PUR data cable
UV resistance<br>Medium Offshore<br>MUD-resistant following NEK 606 - status 2009 Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 60754 UL/CSA<br>Style 10493 and 2464, 300 V, 80 °C NFPA<br>Following NFPA 79-2012 chapter 12.9 DNV-GL<br>Certified to DNV-GL type examination – certificate no.: 13 655-14 HH EAC<br>Certified to no. TC RU C-DE. ME77.B.01559 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF77.UL.05.12.D, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU UL/CSA<br>Style 10493 and 2464, 300 V, 80 °C
  • Requirements: For heavy duty applications
  • Outer jacket: PUR
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Notch-resistant
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Halogen-free
  • Silicone-free
  • PVC-free
  • UV-resistant
  • chainflex® class: 5.5.3.1

de 1,13 USD / ft

20 de 20 un. disponíveis em 2 - 5 dias úteis *Prazo sujeito à alteração conforme disponibilidade
Ir à página do produto
chainflex® CF11 data cable
chainflex® CF11 data cable
UV resistance<br>High Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 50267-2-1 EAC<br>Certified to no. TC RU C-DE. ME77.B.01254 Lead free<br>Following 2011/65/EU (RoHS-II) Clean room<br>According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • Hydrolysis and microbe-resistant
  • Halogen-free
  • Silicone-free
  • PVC-free
  • UV-resistant
  • chainflex® class: 6.6.4.1

de 1,86 USD / ft

19 de 19 un. disponíveis em 2 - 5 dias úteis *Prazo sujeito à alteração conforme disponibilidade
Ir à página do produto

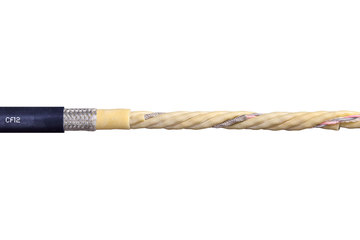

chainflex® CF12 data cable
chainflex® CF12 data cable
UV resistance<br>High Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 60754 EAC<br>Certified to no. TC RU C-DE. ME77.B.01254 Lead free<br>Following 2011/65/EU (RoHS-II) Clean room<br>According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • Halogen-free
  • Silicone-free
  • PVC-free
  • UV-resistant
  • chainflex® class: 6.6.4.1

de 4,79 USD / ft

11 de 11 un. disponíveis em 2 - 5 dias úteis *Prazo sujeito à alteração conforme disponibilidade
Ir à página do produto

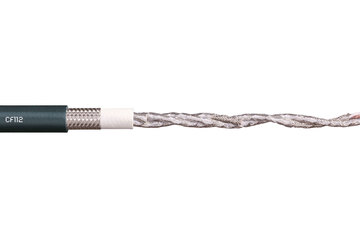

chainflex® data cable CF112
chainflex® data cable CF112
UV resistance<br>High Offshore<br>MUD-resistant following NEK 606 - status 2009 Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 60754 UL/CSA<br>Style 10493 and 20233, 300 V, 80 °C NFPA<br>Following NFPA 79-2012 chapter 12.9 DNV-GL<br>Certified to DNV-GL type examination – certificate no.: 13 655-14 HH EAC<br>Certified to no. TC RU C-DE. ME77.B.01254 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF77.UL.05.12.D, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU UL/CSA<br>Style 10493 and 20233, 300 V, 80 °C
  • Requirements: For extremely heavy duty applications
  • Outer jacket: PUR
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Coolant resistant
  • Notch-resistant
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Halogen-free
  • Silicone-free
  • PVC-free
  • UV-resistant
  • chainflex® class: 6.5.3.1

de 3,98 USD / ft

9 de 9 un. disponíveis em 2 - 5 dias úteis *Prazo sujeito à alteração conforme disponibilidade
Ir à página do produto

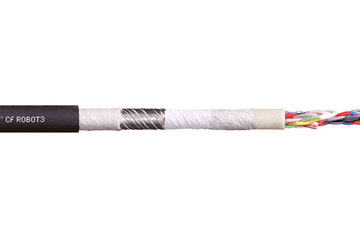

chainflex® data cable CFROBOT3
chainflex® data cable CFROBOT3
UV resistance<br>High Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 10497 and 20911, 300 V, 80 °C NFPA<br>Following NFPA 79-2012 chapter 12.9 EAC<br>Certified to no. TC RU C-DE. ME77.B.01254 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU UL/CSA<br>Style 10497 and 20911, 300 V, 80 °C
  • Requirements: For twistable applications
  • Outer jacket: PUR
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Coolant resistant
  • Notch-resistant
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Silicone-free
  • UV-resistant
  • chainflex® class: 6.1.3.3

de 8,17 USD / ft

4 de 5 un. disponíveis em 2 - 5 dias úteis *Prazo sujeito à alteração conforme disponibilidade
Ir à página do produto

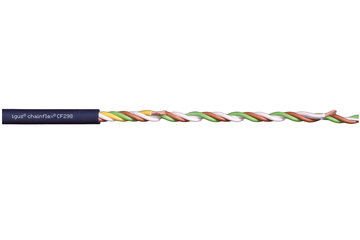

chainflex® CF298 data cable
chainflex® CF298 data cable
UV resistance<br>High Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 60754 Lead free<br>Following 2011/65/EU (RoHS-II) Clean room<br>According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU
  • Requirements: For heaviest duty applications and especially small radii up to 4 x d
  • Outer jacket: TPE
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • Bio-oil-resistant
  • Halogen-free
  • Silicone-free
  • PVC-free
  • UV-resistant
  • chainflex® class: 7.5.4.2

a pedido

Prazo sob consulta, normalmente entre 2 a 6 semanas
Ir à página do produto

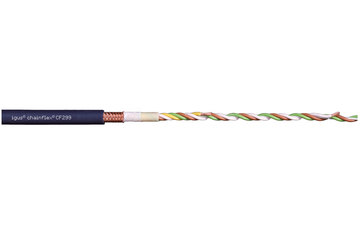

chainflex® CF299 data cable
chainflex® CF299 data cable
UV resistance<br>High Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 60754 Lead free<br>Following 2011/65/EU (RoHS-II) Clean room<br>According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU
  • Requirements: For heaviest duty applications and especially small radii up to 4 x d
  • Outer jacket: TPE
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • Bio-oil-resistant
  • Halogen-free
  • Silicone-free
  • PVC-free
  • UV-resistant
  • chainflex® class: 7.5.4.1

a pedido

Prazo sob consulta, normalmente entre 2 a 6 semanas
Ir à página do produto

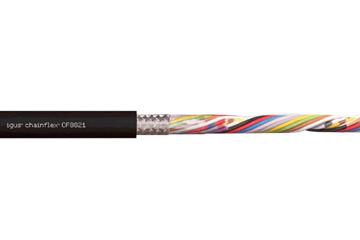

chainflex® data cable CF8821
chainflex® data cable CF8821
Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 10493 and 2464, 300 V, 80 °C NFPA<br>Following NFPA 79-2012 chapter 12.9 Lead free<br>Following 2011/65/EU (RoHS-II) CE<br>Following 2014/35/EU UL/CSA<br>Style 10493 and 2464, 300 V, 80 °C
  • Requirements: For flexing applications
  • Outer jacket: PVC
  • Overall shield
  • Oil resistance: No oil resistance
  • Flame retardant
  • Silicone-free
  • chainflex® class: 3.1.1.1

a pedido

10 de 10 un. disponíveis a partir de 24 - 48 *Prazo sujeito à alteração conforme disponibilidade
Ir à página do produto
