Save costs and improve processes!
Set sail with sophisticated, maintenance-free igus® products …
Lubricant- and maintenance-free products for the shipbuilding industry
The construction of increasingly larger ships poses high demands on the production processes in any wharf. igus® products display their strengths in ship construction and processing and also in many other overall shipbuilding applications: They provide safe energy supply systems for indoor cranes, welding and cutting facilities, material testing instruments, robots und transporters, etc.
Optimize the service life of your facilities and at the same time reduce the process costs with igus® high-performance polymer products. igus® products are suited for applications in almost all environments: Heat, cold, damp, dirt – we always have a solution.
An overview of the highlights:
Maintenance- and lubrication-free, predictable service life
Resistant against corrosion, salt water, chemicals and UV radiation
Suitable for use in extreme temperatures
Easy installation, flexible and modular
Products
For use in the shipbuilding and offshore industry
energy chains supply energy, data and signals and are continuously in motion. We offer you all components - e-chains®, special cables, plug connectors, accessories - individually or as complete system.

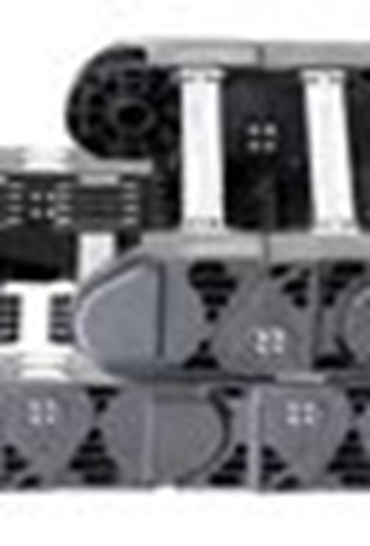

Roller chain profile, energy-efficient
Quiet, abrasion-resistant and maintenance-free
For long travel distances of 600 m and more
Very high fill weights and speeds

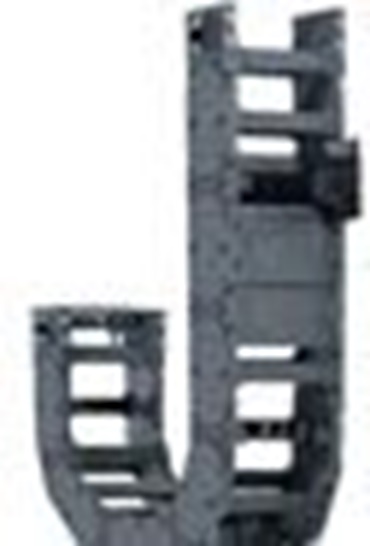

Universal energy chain
Almost all applications possible
Inner heights from
21 to 80 mm.
Can be opened from both sides
Quick installation, cable-friendly design

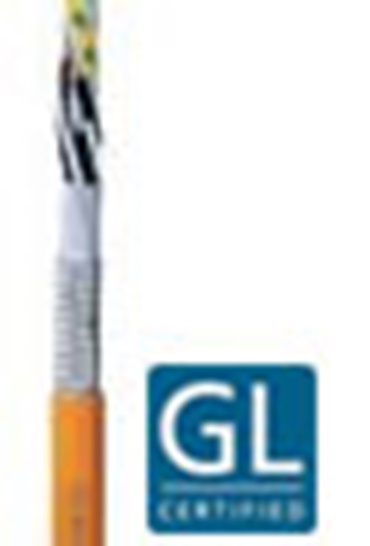

Servo cables
Bending radii from 7,5xd
Entire shield with optimum braid angle
Jacket materials: PVC or PUR

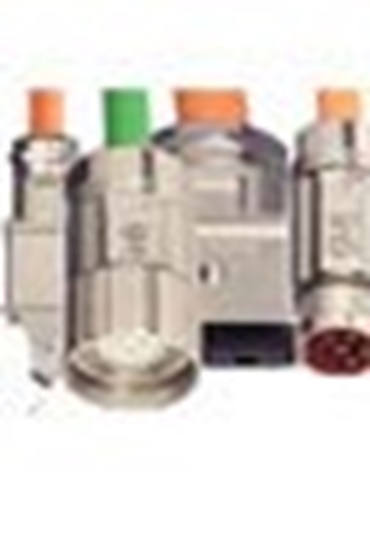

Systems for drive technology
Assembled power, servo, encoder, signal and motor cables
According to manufacturer's
standards, e.g. Siemens, Lenze, SEW, Fanuc, etc.
Bending radii from 7,5xd

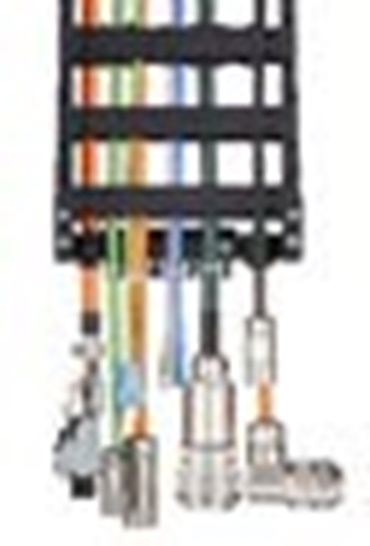

Preassembled complete systems with all components
Increase cash-flow
Keep capacities flexible
Shorten processing times
Avoid machine
downtimes
Reduce storage costs to zero

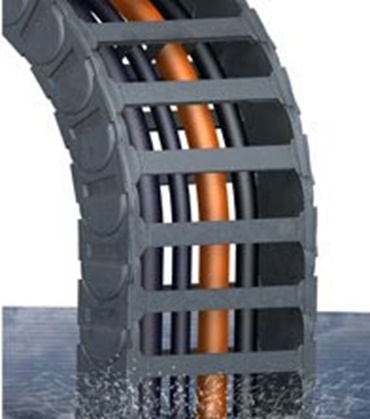

Energy chain for use in offshore applications
Heavy-duty energy supply specifically for use on the ocean floor.
iglidur® high-performance polymer bearings
Maintenance-free
Lubricant-free
Corrosion resistance
Extremely insensitive to dirt
High accuracy grade
High compressive strengths
Low thermal relaxation
Good heat conductivity
Very low creeping tendency
High mechanical dampening
Product selection for the shipbuilding industry

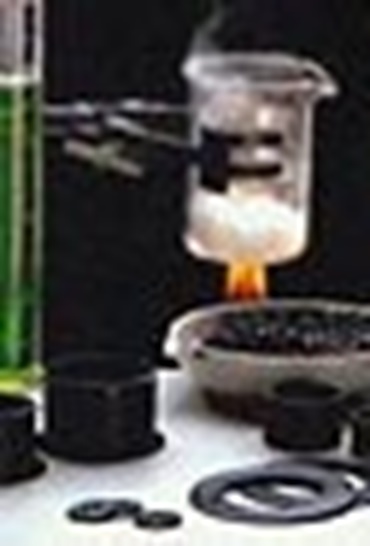

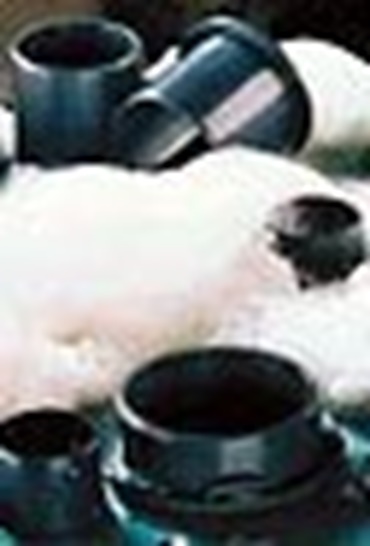

The high-tech troubleshooter
Very high resistance
against chemicals
Very low humidity
absorption
Operating temperatures from -100°C to + 250°C in continuous operation

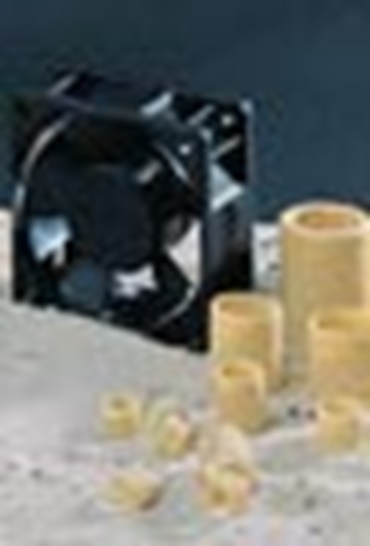

The fast-and-slow motion specialist
High resistance
against chemicals
Low humidity
absorption
vibration dampening

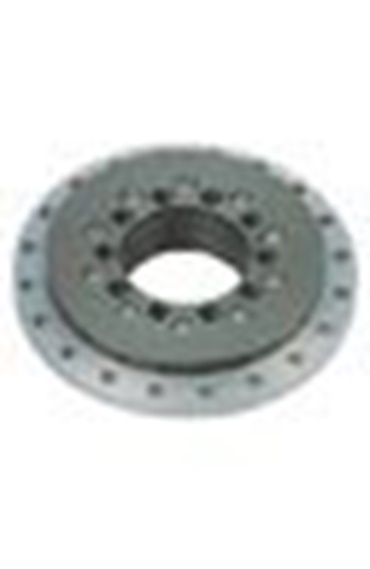

Polymer slewing ring bearings
Ready-to-install, rugged, corrosion-resistant bearing unit for high loads
For extreme overturning torques
Application in alternating ambient media possible
For wet areas
Usable underwater
For high temperatures
Chemical resistant

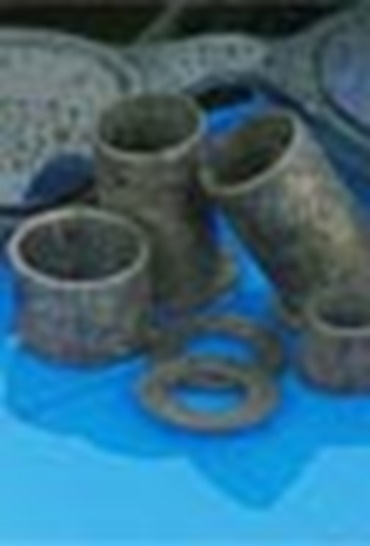

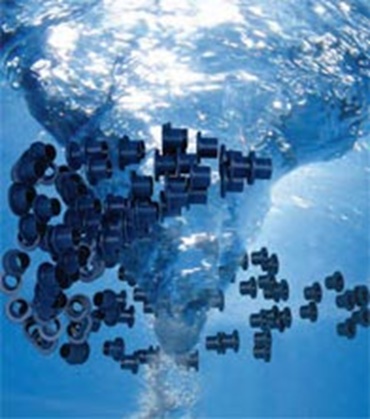

Underwater bearings
For underwater applications
For fast and continuous rotations
High holding times

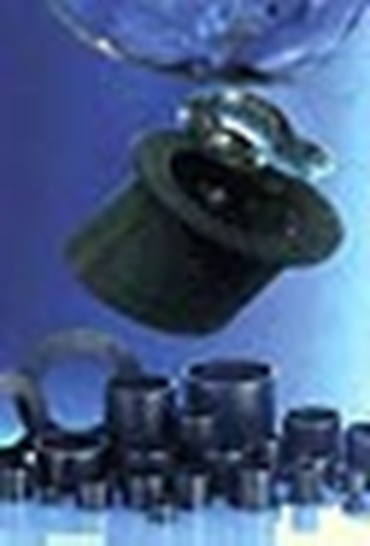

Underwater bearings
For underwater application at high temperatures
For fast and continuous movements
drylin® - Maintenance- and lubricant-free linear plain bearings
Maintenance-free
Self-lubricating
Resistant to dirt, dust and humidity
Weight reduction
Very quiet run
wear-resistant
Corrossion-resistant
Insensitive to impacts and vibrations
Low coefficients of friction
High static load capacity
High speeds and accelerations possible

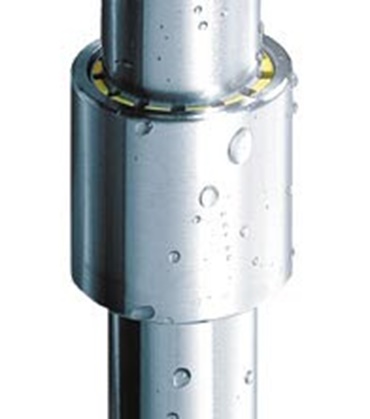

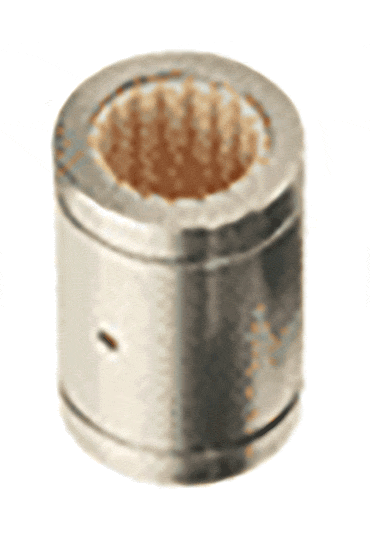

Stainless steel linear technology
Linear bearings and guides, spindle linear units made of VA material for the highest resistance in all media.

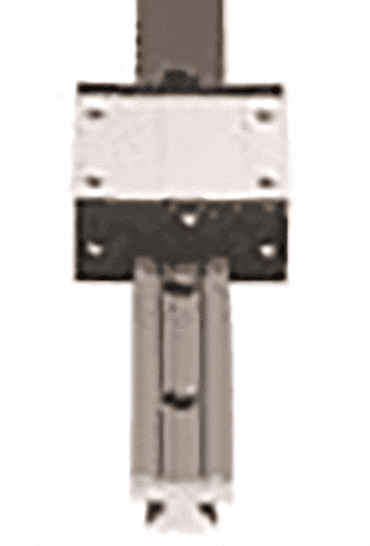

linear guide systems
Rugged linear guide for use in a wide range of (including extreme) environments. Corrosion-free, wear-resistant, low coefficient of friction.
Application examples
From the shipbuilding and offshore sectorShipyard
Eight gantry cranes connected in series travel a total length of 180 m with plastic energy chains.
Boat cranes
In contrast to metal and bronze bearings, the igus® bearings do not corrode due to their high-performance polymer structure and are for this reason the ideal choice for underwater application.
Mooring system for sail and motor yachts
High load capacity and durable
Marine lift for water vehicles for leisure purposes
Corrosion-proof in sea water
Underwater boring machine
Series CF27.D servo cables in underwater applications.
Ship loader
Since the ship loader started operations in 2000, no troubles, either mechanical or in the cables, have occurred in the energy chain area.
3D flow distributor
Ball bearing assemblies are very precarious due to the lubricant particularly under water. Stainless steel guidances cannot be considered due to the high costs. Plastic is used also for hygienic reasons.
Boat motor
lifting device
Boat motor lifting device and inner boom roll-up device equipped with plastic plain bearings.
Rust-free roller chain
The maintenance-free polymer bearings are used in rust-proof roller chains, which are employed to drive main and auxiliary equipment.
Ship fittings
Now freedom from corrosion is an important argument for the application of iglidur® G plain bearings in ship fittings.
Solar energy on a sailing boat
For protection against outdoor influences the connection cables of the solar cell were mounted in an E2 micro energy chain.
Helicopter hangar for ships
Telescope type deploying and retracting of a hangar at sea.
