iglidur® HLW - Low-cost material for high temperature- and media resistance

New in standard range

iglidur® HLW is conceptualised for high volumes and is suitable for high temperatures with a good media resistance

Cost-effective

Suitable for under water use

Continuous use up to 200°C

High media resistance

	iglidur® HLW material data
	Density	1.71 g/cm³
	Colour	Grey
	Max. moisture absorption at 23 °C and 50% r.h.	0.1 % weight
	Max. water absorption	0.3 % weight
	Max. long-term application temperature	200°C
	Max. short-term application temperature	240°C
	Lower application temperature	-40°C
	Flexural modulus	11,000 MPa
	Max. surface pressure	89 MPa
	Surface resistance^*	>10²Ω

*The good conductivity of this plastic material under certain circumstances can favour the generation of corrosion on the metallic contact components.

Product range:

iglidur® HLW, Form S (metric)

No. de artigo:

Secção do eixo d1 [mm]:
Secção externo d2 [mm]:
Largura do suporte b1 [mm]:

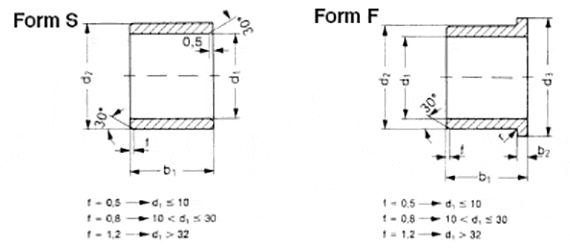

Part No.	d1	Tolerance		d2	b1
		pressed in H7
	[mm]	Min.	max.	[mm]	[mm]
HLWSM-0405-04 ⁽¹⁾	4	+0,010		5	4	R$ 1,80
HLWSM-0405-06 ⁽¹⁾	4	+0,010		5	6	R$ 1,80
HLWSM-0507-05 ⁽¹⁾	5	+0,010		7	5	R$ 1,80
HLWSM-0507-10 ⁽¹⁾	5	+0,010		7	10	R$ 1,99
HLWSM-0608-06 ⁽¹⁾	6	+0,010		8	6	R$ 1,99
HLWSM-0608-08 ⁽¹⁾	6	+0,013		8	8	R$ 1,99
HLWSM-0608-10 ⁽¹⁾	6	+0,010		8	10	R$ 1,99
HLWSM-0810-08 ⁽¹⁾	8	+0,013		10	8	R$ 1,99
HLWSM-0810-10 ⁽¹⁾	8	+0,013		10	10	R$ 1,99
HLWSM-0810-12 ⁽¹⁾	8	+0,013		10	12	R$ 2,17
HLWSM-1012-08 ⁽¹⁾	10	+0,016		12	8	R$ 1,99
HLWSM-1012-10 ⁽¹⁾	10	+0,016		12	10	R$ 2,17
HLWSM-1012-12 ⁽¹⁾	10	+0,016		12	12	R$ 2,17
HLWSM-1012-15 ⁽¹⁾	10	+0,016		12	15	R$ 2,35
HLWSM-1012-20 ⁽¹⁾	10	+0,016		12	20	R$ 2,53
HLWSM-1214-10 ⁽¹⁾	12	+0,016		14	10	R$ 2,17
HLWSM-1214-12 ⁽¹⁾	12	+0,016		14	12	R$ 2,35
HLWSM-1214-15 ⁽¹⁾	12	+0,016		14	15	R$ 2,35
HLWSM-1214-20 ⁽¹⁾	12	+0,016		14	20	R$ 2,53
HLWSM-1315-10 ⁽¹⁾	13	+0,016		15	10	R$ 3,25
HLWSM-1315-20 ⁽¹⁾	13	+0,016		15	20	R$ 3,79
HLWSM-1416-15 ⁽¹⁾	14	+0,016		16	15	R$ 3,61
HLWSM-1416-20 ⁽¹⁾	14	+0,016		16	20	R$ 3,79
HLWSM-1416-25 ⁽¹⁾	14	+0,016		16	25	R$ 3,97
HLWSM-1517-15 ⁽¹⁾	15	+0,016		17	15	R$ 3,79
HLWSM-1517-20 ⁽¹⁾	15	+0,016		17	20	R$ 3,97
HLWSM-1517-25 ⁽¹⁾	15	+0,016		17	25	R$ 4,33
HLWSM-1618-15 ⁽¹⁾	16	+0,016		18	15	R$ 3,79
HLWSM-1618-20 ⁽¹⁾	16	+0,016		18	20	R$ 4,15
HLWSM-1618-25 ⁽¹⁾	16	+0,016		18	25	R$ 4,33
HLWSM-1820-15 ⁽¹⁾	18	+0,020		20	15	R$ 3,97
HLWSM-1820-20 ⁽¹⁾	18	+0,020		20	20	R$ 4,15
HLWSM-1820-25 ⁽¹⁾	18	+0,020		20	25	R$ 4,51
HLWSM-2023-10 ⁽¹⁾	20	+0,020		23	10	R$ 5,05
HLWSM-2023-15 ⁽¹⁾	20	+0,020		23	15	R$ 5,60
HLWSM-2023-20 ⁽¹⁾	20	+0,020		23	20	R$ 6,14
HLWSM-2023-25 ⁽¹⁾	20	+0,020		23	25	R$ 6,50
HLWSM-2023-30 ⁽¹⁾	20	+0,020		23	30	R$ 7,04
HLWSM-2225-15 ⁽¹⁾	22	+0,020		25	15	R$ 5,78
HLWSM-2225-20 ⁽¹⁾	22	+0,020		25	20	R$ 6,32
HLWSM-2225-25 ⁽¹⁾	22	+0,020		25	25	R$ 6,86
HLWSM-2225-30 ⁽¹⁾	22	+0,020		25	30	R$ 7,22
HLWSM-2427-15 ⁽¹⁾	24	+0,020		27	15	R$ 5,78
HLWSM-2427-20 ⁽¹⁾	24	+0,020		27	20	R$ 6,50
HLWSM-2427-25 ⁽¹⁾	24	+0,020		27	25	R$ 7,04
HLWSM-2427-30 ⁽¹⁾	24	+0,020		27	30	R$ 7,58
HLWSM-2528-15 ⁽¹⁾	25	+0,020		28	15	R$ 5,96
HLWSM-2528-20 ⁽¹⁾	25	+0,020		28	20	R$ 6,50
HLWSM-2528-25 ⁽¹⁾	25	+0,020		28	25	R$ 7,04
HLWSM-2528-30 ⁽¹⁾	25	+0,020		28	30	R$ 7,76
HLWSM-2832-20 ⁽¹⁾	28	+0,020		32	20	R$ 8,85
HLWSM-2832-25 ⁽¹⁾	28	+0,020		32	25	R$ 9,75
HLWSM-2832-30 ⁽¹⁾	28	+0,020		32	30	R$ 10,65
HLWSM-3034-20 ⁽¹⁾	30	+0,025		34	20	R$ 9,20
HLWSM-3034-25 ⁽¹⁾	30	+0,025		34	25	R$ 10,11
HLWSM-3034-30 ⁽¹⁾	30	+0,025		34	30	R$ 60,30
HLWSM-3034-40 ⁽¹⁾	30	+0,025		34	40	R$ 13,00
HLWSM-3236-20 ⁽¹⁾	32	+0,025		36	20	R$ 9,39
HLWSM-3236-30 ⁽¹⁾	32	+0,025		36	30	R$ 11,37
HLWSM-3236-40 ⁽¹⁾	32	+0,025		36	40	R$ 13,36
HLWSM-3539-20 ⁽¹⁾	35	+0,025		39	20	R$ 13,72
HLWSM-3539-30 ⁽¹⁾	35	+0,025		39	30	R$ 15,88
HLWSM-3539-40 ⁽¹⁾	35	+0,025		39	40	R$ 18,05
HLWSM-3539-50 ⁽¹⁾	35	+0,025		39	50	R$ 20,40
HLWSM-4044-20 ⁽¹⁾	40	+0,025		44	20	R$ 14,80
HLWSM-4044-30 ⁽¹⁾	40	+0,025		44	30	R$ 17,33
HLWSM-4044-40 ⁽¹⁾	40	+0,025		44	40	R$ 19,85
HLWSM-4044-50 ⁽¹⁾	40	+0,025		44	50	R$ 22,20
HLWSM-4550-20 ⁽¹⁾	45	+0,025		50	20	R$ 16,79
HLWSM-4550-30 ⁽¹⁾	45	+0,025		50	30	R$ 20,40
HLWSM-4550-40 ⁽¹⁾	45	+0,025		50	40	R$ 23,83
HLWSM-4550-50 ⁽¹⁾	45	+0,025		50	50	R$ 27,44
HLWSM-5055-20 ⁽¹⁾	50	+0,030		55	20	R$ 17,51
HLWSM-5055-30 ⁽¹⁾	50	+0,025		55	30	R$ 21,48
HLWSM-5055-40 ⁽¹⁾	50	+0,025		55	40	R$ 25,45
HLWSM-5055-50 ⁽¹⁾	50	+0,025		55	50	R$ 29,24
HLWSM-5055-60 ⁽¹⁾	50	+0,025		55	60	R$ 84,29

Mais sobre a peça selecionada:

3D-CAD

Encomenda de amostras

Solicitação de cotação

myCatalog

(1) A tolerância d1 especificada é auto ajustável após o encaixe por pressão. Método de teste

iglidur® HLW, Form F (metric)

Secção do eixo d1 [mm]:
Secção externo d2 [mm]:
Secção da flange d3 [mm]:
Largura do suporte b1 [mm]:
Espessura da flange b2 [mm]:

Part No.	d1	Tolerance		d2	d3	b1	b2
		pressed in H7
	[mm]	Min.	max.	[mm]	[mm]	[mm]	[mm]
HLWFM-0608-04 ⁽¹⁾	6	+0,013		8	12	4	1	R$ 1,99
HLWFM-0608-08 ⁽¹⁾	6	+0,013		8	12	8	1	R$ 1,99
HLWFM-0810-05 ⁽¹⁾	8	+0,013		10	15	5	1	R$ 1,99
HLWFM-0810-07 ⁽¹⁾	8	+0,013		10	15	7	1	R$ 2,17
HLWFM-0810-09 ⁽¹⁾	8	+0,013		10	15	9	1	R$ 2,17
HLWFM-1012-07 ⁽¹⁾	10	+0,016		12	18	7	1	R$ 2,89
HLWFM-1012-09 ⁽¹⁾	10	+0,016		12	18	9	1	R$ 2,89
HLWFM-1012-12 ⁽¹⁾	10	+0,016		12	18	12	1	R$ 3,07
HLWFM-1012-17 ⁽¹⁾	10	+0,016		12	18	17	1	R$ 3,25
HLWFM-1214-07 ⁽¹⁾	12	+0,016		14	20	7	1	R$ 2,89
HLWFM-1214-09 ⁽¹⁾	12	+0,016		14	20	9	1	R$ 2,89
HLWFM-1214-12 ⁽¹⁾	12	+0,016		14	20	12	1	R$ 3,07
HLWFM-1214-17 ⁽¹⁾	12	+0,016		14	20	17	1	R$ 3,25
HLWFM-1416-12 ⁽¹⁾	14	+0,016		16	22	12	1	R$ 3,25
HLWFM-1416-17 ⁽¹⁾	14	+0,016		16	22	17	1	R$ 3,43
HLWFM-1517-09 ⁽¹⁾	15	+0,016		17	23	9	1	R$ 3,61
HLWFM-1517-12 ⁽¹⁾	15	+0,016		17	23	12	1	R$ 3,79
HLWFM-1517-17 ⁽¹⁾	15	+0,016		17	23	17	1	R$ 3,97
HLWFM-1618-12 ⁽¹⁾	16	+0,016		18	24	12	1	R$ 3,79
HLWFM-1618-17 ⁽¹⁾	16	+0,016		18	24	17	1	R$ 4,15
HLWFM-1820-12 ⁽¹⁾	18	+0,020		20	26	12	1	R$ 3,97
HLWFM-1820-17 ⁽¹⁾	18	+0,020		20	26	17	1	R$ 4,15
HLWFM-1820-22 ⁽¹⁾	18	+0,020		20	26	22	1	R$ 4,51
HLWFM-2023-11 ⁽¹⁾	20	+0,020		23	30	11	1,5	R$ 5,60
HLWFM-2023-16 ⁽¹⁾	20	+0,020		23	30	16	1,5	R$ 5,96
HLWFM-2023-21 ⁽¹⁾	20	+0,020		23	30	21	1,5	R$ 6,50
HLWFM-2528-11 ⁽¹⁾	25	+0,020		28	35	11	1,5	R$ 5,96
HLWFM-2528-16 ⁽¹⁾	25	+0,020		28	35	16	1,5	R$ 6,50
HLWFM-2528-21 ⁽¹⁾	25	+0,020		28	35	21	1,5	R$ 7,04
HLWFM-3034-16 ⁽¹⁾	30	+0,025		34	42	16	2	R$ 9,39
HLWFM-3034-26 ⁽¹⁾	30	+0,025		34	42	26	2	R$ 11,19
HLWFM-3539-16 ⁽¹⁾	35	+0,025		39	47	16	2	R$ 13,90
HLWFM-3539-26 ⁽¹⁾	35	+0,025		39	47	26	2	R$ 16,25
HLWFM-4044-30 ⁽¹⁾	40	+0,025		44	52	30	2	R$ 18,05
HLWFM-4044-40 ⁽¹⁾	40	+0,025		44	52	40	2	R$ 20,58
HLWFM-4550-50 ⁽¹⁾	45	+0,025		50	58	50	2	R$ 28,70

Mais sobre a peça selecionada:

3D-CAD

Encomenda de amostras

Solicitação de cotação

myCatalog

(1) A tolerância d1 especificada é auto ajustável após o encaixe por pressão. Método de teste
