Special properties cross slide

High precision, extreme stiffening and precise alignment through CNC production

Available as standard and preload version

100% lubricant-free and completely corrosion-free

Adjustments by trapezoidal thread TR 10x2

Mounting of upper unit with right or left alignment possible

Available accessories (hand wheel, cursor ...)

SHT-XY - XY table installation sizes

SHT-XY-08-AWM

Max. stroke length: 150mm
Carriage length: 65mm
Shaft material: aluminium
Shaft diameter: 8mm

SHT-XY-12-AWM

Max. stroke length: 350mm
Carriage length: 85mm
Shaft material: aluminium
Shaft diameter: 12mm

With spring pre-load - PL versions

SHT-XY-12-AWM-PL

Max. stroke length: 350mm
Carriage length: 85mm
Shaft material: aluminium
Shaft diameter: 12mm
With pre-load

SHT-XY-20-EWM-PL

Max. stroke length: 500mm
Carriage length: 130mm
Shaft material: stainless steel
Shaft diameter: 20mm
With pre-load

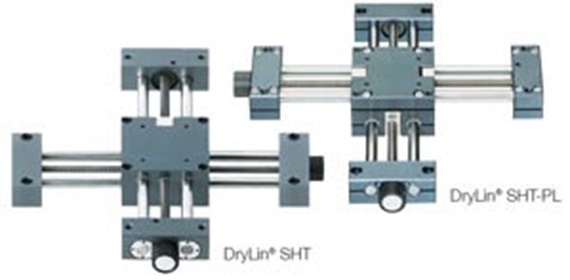

SHT/SHT-PL - cross slide

Cross slide lengths and weights [mm]

Order no.	A -0.3 [mm]	H [mm]	E1 ±0,15 [mm]	E2 ±0,15 [mm]	Base- length lx [mm]	Base- length ly [mm]	R [mm]	f [mm]	lt ±0,1 [mm]	tk [mm]	ts [mm]	tg	kt [mm]
SHT-XY-12	85	56	70	73	145	145	42	2	30	11	6,6	M8	6,4
SHT-XY-08	65	42	52	56	96	96	32	1,5	15,5	10	5,5	M6	7
SHT-XY-12-PL	85	56	70	73	145	145	42	2	30	11	6,6	M8	6,4
SHT-XY-20-EWM-PL	130	86	108	115	202	202	72	2	36	15	9	M10	8,6

Mais sobre a peça selecionada:

3D-CAD

Encomenda de amostras

PDF

Solicitação de cotação

myCatalog

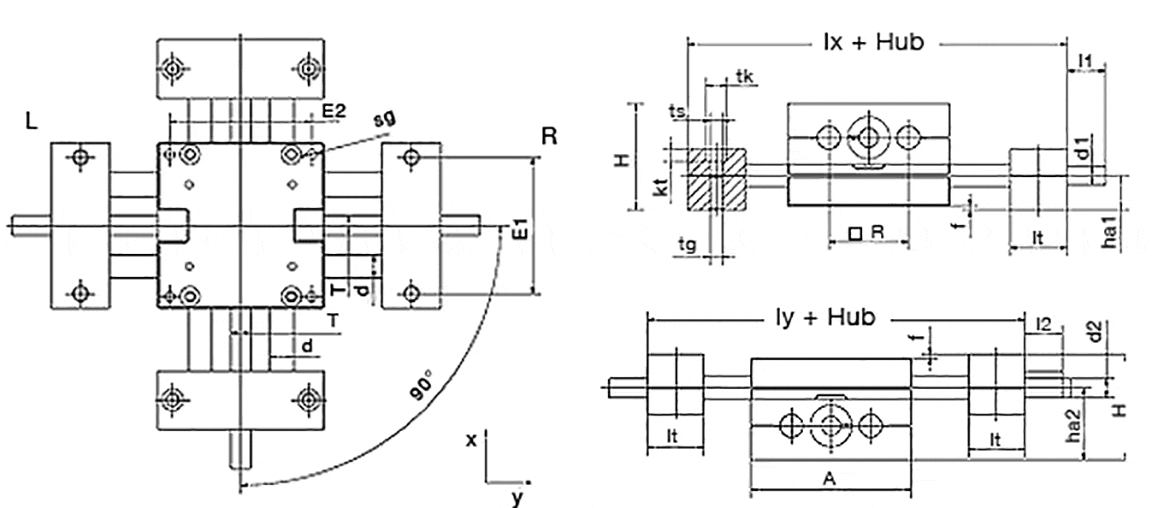

Cross slide dimensions [mm]

Order no.	sg	d [mm]	T	l1 [mm]	d1 Standard	d1 Alternativ	l2 [mm]	d2 Alternativ	ha1 [mm]	ha2 [mm]	W ha2-ha1 [mm]
SHT-XY-12	M6	12	TR10x2	17	TR10x2	6h9	17	6h9	18	38	20
SHT-XY-08	M5	8	TR6x2/TR6,35x2,54	15,5	TR6x2/TR6,35x2,54	5	15	5	13	29	16
SHT-XY-12-PL	M6	12	TR10x2	17	TR10x2	6h9	17	6h9	18	38	20
SHT-XY-20-EWM-PL	M8	20	TR18x4	26	TR18x4	-	26	12h9	23	63	40

Mais sobre a peça selecionada:

3D-CAD

Encomenda de amostras

PDF

Solicitação de cotação

myCatalog

You can order the hand wheel of the y-axis to be mounted left or right.
Left: SHT-XY-12-AWM-L-200-300 for 200 mm stroke lengths in x-direction and 300 mm in y-direction.
Right: SHT-XY-12-AWM-R-200-300 for 200 mm stroke lenghts in x-direction und 300 mm in y-direction

Technical options for the SHT series

The following options can be delivered for the SHT-XY product range.

Lead screw material for SHT-XY XY tables

Lead screw design

All drylin® SHT-ES linear modules are delivered with self-locking trapezoidal lead screws made of stainless steel. Hard-coated aluminium is also available upon request. The series can also be configured with stainless steel high helix lead screws. This allows for much higher pitches and drive speeds, but without the self-locking feature.

Stepper motors for igus linear modules and XY tables

Electric drive systems: electric motors from igus

Whether DC, lead screw stepper or EC/BLDC motors: with its wide-ranging motor shop, igus offers the possibility of equipping linear axis systems with the appropriate motor solutions. In combination with drylin linear axes, which can be ordered completely ready for installation and connection, entire handling systems can be configured. With the powerful motors you solve a wide variety of problems in electric drive technology.

To the stepper motors

Plain bearing material for igus linear modules and XY tables

Bearing materials

All drylin® drive units bearing points are equipped with lubrication-free and maintenance-free igus® high performance polymers. Options include materials for high-temperature applications up to +180°C (iglidur® X, SHT-ES series), and for FDA-compliant environments (iglidur® A180).

To the plain bearing materials
