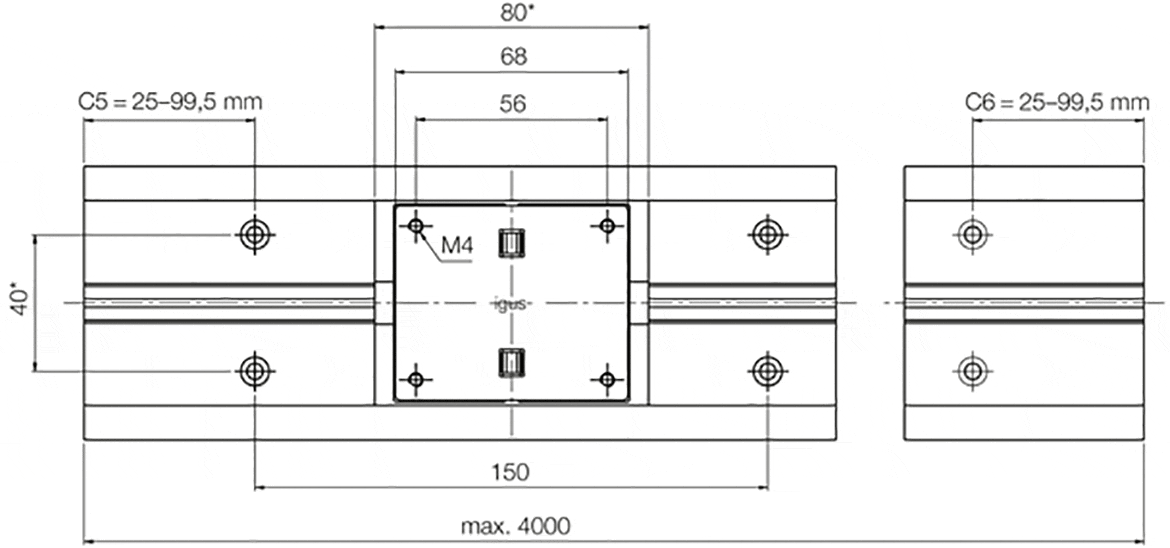

Part No. | Max. rail lengths | a | C4 | A3 | C5=C6 | h | h1 | K1* | ly | lz | Rail weight | Price / m | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
[L max.] | Min. | max. | [mm2] | [mm2] | [g/m] | |||||||||
NS-01-80 | 4000 | 80 | 150 | 40 | 25 | 99,5 | 11 | 1,5 | M4 | 271200 | 2900 | 1140 | R$ 340,61 | |
NS-01-80-AR | 4000 | 80 | 150 | 0 | 20 | 99,5 | 11 | 1,5 | 27120 | 2900 | 1140 | R$ 740,00 | ||
NS-01-80-UNGEBOHRT | 4000 | 80 | 0 | 0 | 11 | 1,5 | 27120 | 2900 | 1140 | R$ 270,05 |
For unbored rails please indicate "Unbored" in the remark.
* for cylinder screw with low head
Order no. | Designation | Weight of carriage | ||
---|---|---|---|---|
[g] | ||||
NW-02-80 | Patins standard | 100 | R$ 96,84 | |
NW-02-80-LLY | Patins standard, patins flutuante direção y | 100 | R$ 96,84 | |
NW-02-80-LLZ | Patins standard, patins flutuante direção z | 100 | R$ 102,94 | |
NW-02-80-LLYZ | Patins standard, patins flutuante direção y e z | 100 | R$ 96,84 |

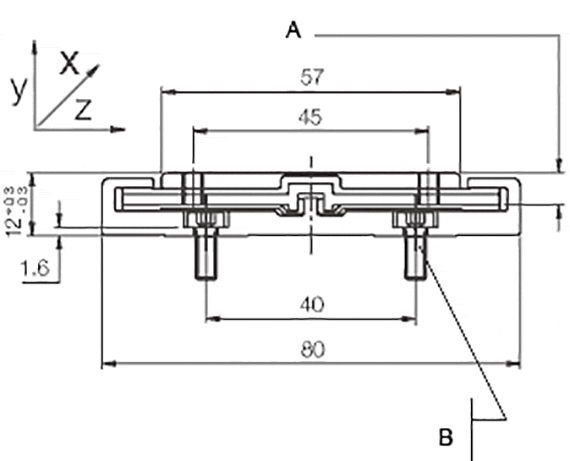

Part. No. | H | A | C | C1 | C2 | A2 | H2 | K2 | K3 | K4 | Spmin. | DpØmin. | Weight |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
±0,35 | [g/m] | ||||||||||||
NW-02-80 | 12 | 57 | 80 | 68 | 56 | 45 | 0 | M4 | 0 | 0 | 100 | ||
NW-02-80-LLY | 12 | 57 | 80 | 68 | 56 | 45 | 0 | M4 | 0 | 0 | 100 | ||
NW-02-80-LLZ | 12 | 57 | 80 | 68 | 56 | 45 | 0 | M4 | 0 | 0 | 100 | ||
NW-02-80-LLYZ | 12 | 57 | 80 | 68 | 56 | 45 | 0 | M4 | 0 | 0 | 100 |
Order no. | Designation | Weight of carriage | ||
---|---|---|---|---|
 : | [g] | |||
NW-12-80 | Patins moldado por injeção | 100 | R$ 94,74 | |
NW-12-80-LLY | Patins moldado por injeção, patins flutuante direção y | 100 | R$ 100,71 | |
NW-12-80-LLZ | Patins moldado por injeção, patins flutuante direção z | 100 | R$ 100,71 | |
NW-12-80-LLYZ | Patins moldado por injeção, patins flutuante direção y e z | 100 | R$ 94,74 |
Part. No. | H | A | C | C1 | C2 | A2 | H2 | K2 | K3 | K4 | Spmin. | DpØmin. | Weight |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
±0,35 | [g/m] | ||||||||||||
NW-12-80 | 12 | 57 | 83 | 68 | 56 | 45 | 0 | M4 | 0 | 0 | 100 | ||
NW-12-80-LLY | 12 | 57 | 83 | 68 | 56 | 45 | 0 | M4 | 0 | 0 | 100 | ||
NW-12-80-LLZ | 12 | 57 | 83 | 68 | 56 | 45 | 0 | M4 | 0 | 0 | 100 | ||
NW-12-80-LLYZ | 12 | 57 | 83 | 68 | 56 | 45 | 0 | M4 | 0 | 0 | 100 |
no floating bearing
2Floating bearing in z-direction
3Floating bearing in y-direction
4Floating bearing in yz-direction
Enter the required number of carriages.
